Linear Ccd 1d Barcode Scan Engine 60mm 500mm Field Depth 1500 Resolution - China

price: check with company for price

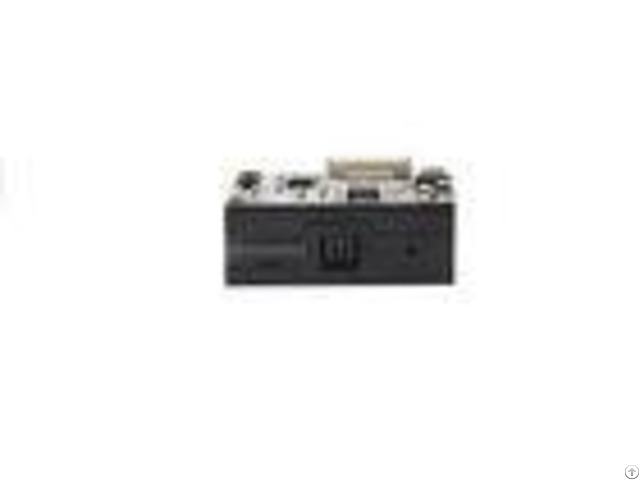

Linear Ccd 1d Barcode Scan Engine 60mm 500mm Field Depth 1500 Resolution

Products Photos Catalog Linear Ccd Barcode Photos Catalog

Linear CCD 1d Barcode Scan Engine 60mm-500mm Field Depth 1500 Resolution - - - - Physical Parameter | | Weight | 6g | Dimension | (L)22.5mm * (W)28.0mm * (H)12.3mm | Interface Type | FFC 12PIN Pitch 0.5 | Communication Mode | USB(USB-KBW, USB-COM), TTL, PS2 | Power Supply | DC 3.3-5V@50mA(work) | Performance | | Scan Type | Linear CCD | Light Source | Visible red light, 62510nm | CPU | 32-bit | Resolution | 1500 | Resolution | 4mil/0.1mm(PCS90%, Code 39) | Decoding speed | 300times/sec | Depth of field | 60mm-500mm | Scan Mode | Manual, Continuous, flashing | Scan Angle | Roll30, Pitch50, Skew50(PCS90%, Code 39, 10mil/0.25mm) | Print Contrast Signal | 25% | Ambient Light | Dark environment, indoor natural light | Symbologies | UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA), Codabar(NW-7), Plessey, MSI Plessey, RSS, China Post, etc.

| Environmental | | Operating temperature | -20 to 50 | Storage temperature | -40 to 70 | Humidity | 5% to 95%(non-condensing) | Drop Height | 1.2 m | Transport vibration Test | 10H@125RPM | Depth of field | | 4MIL | 100-120mm (PCS90%, Code 39) | 13MIL | 60-240mm (PCS90%, EAN-13) | 20MIL | 70-350mm (PCS90%, Code 39) | 40MIL | 150-500mm (PCS90%, Code 39) | Accessories List | | Cable(Optional) | USB Cable, used to connect the DE1300 to a host device.

RS232 Cable, used to connect the DE1300 to a host device, with USB supply cable.

PS2 Cable, used to connect the DE1300 to a host device and keyboard input device.

| Development board( optional) | Equipped with a trigger button, beeper and RS-232 & USB output function.

| Power Adaptor | Output: DC5V 1A, Input: AC100~240V 50~60Hz(serial port optional).

| - - - -


Company Contact:


  • Phone: 86-755-21032537

  • Address: 3/F, Longsheng Times Building, Industrial Road, Longhua District, Shenzhen, 518000, China​​​​​​†‹, Shenzhen , Guangdong , China

  • Email: Email

Published date: March 6, 2018

  • Business Description: All products pass CE, ROHS, FCC, ISO9001, ISO14001, Grade I National Standard for Laser Safty certification, etc.

    Widely used in industry, commerce, transportation, finance, medical and health, tobacco industry, mobile payment and office automation.
