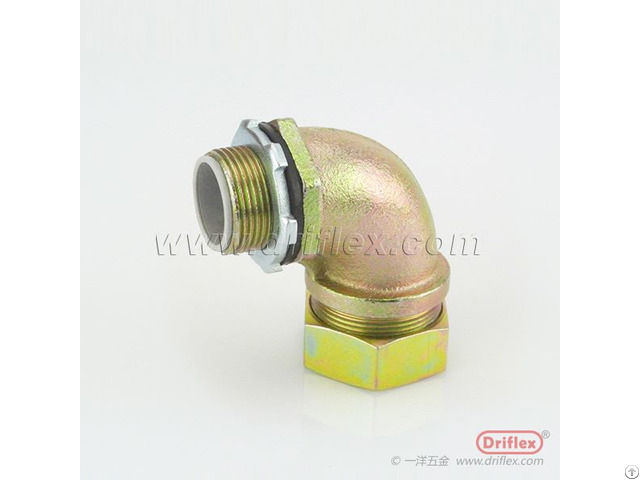

Malleable Iron 90d Angle - China
price: 0.68 Dollar US$
Model: LTCM-23
Description:
Malleable iron Conduit Fittings-90d Angle
Structure:
Connector body with hexagonal wrench surface, thread ISO metric in accordance with EN60423 or thread NPT in accordance with ANS/ASME B1.20.1-1983, Comply with stands AS/NZS 2053 - 8, hexagonal pressure nut, sealing ring and ferrule
Material:
Connector body - Galvanized die casting, zinc plated steel& malleable iron, nickel plated brass, stainless steel.
Hexagon pressure nut - Galvanized die casting zinc plated steel& malleable iron, nickel plated brass, stainless steel.
Sealing ring - Nylon 66
Ferrule - Galvanized steel
Features:
Simple, one piece installation provides a quick and reliable liquid-tight seal
IP rating from IP40 to IP66/67/68 in combination with the corresponding flexible conduits
High mechanical strength
Highly liquid-tight and dustproof
Vibration and tensionproof
Inherently low fire hazard
Covering of the conduit ends
Temperature range from -40oC to +150oC
Available in straight, 45o and 90o bodies
Available in ISO Metric and NPT , PF, PG, BSP etc.
threads
Applications:
General indutrial and commerical electrical wiring protection
Machining centres and robotics
any narrow space in static applications
General wiring for OEM applications
Low fire hazard applications
Underflooring wiring in office buildings
Machine tools
Installations where liquid-tight is a requirement
Outdoor installation
Special Applications:
According to customer's samples and specifications, we can manufacture special fittings for suit any type of flexible conduit applications.
Company Contact:
- Posted By: Tianjin Driflex Co., Ltd.
- Phone: 022-66282962
- Address: No.95, The 4th Avenue, TEDA, Tianjin 300457, PR China, Tianjin , tianjin , China
- Email:
Published date: January 18, 2017
- Business Description: Tianjin Driflex Co., Ltd. is a leading manufacturer and supplier of high quality metallic conduit fittings and flexible conduit based in China.
Driflex main products includes: Conduit fittings, Liquid-tight conduit fittings, Explosive-proof fittings, Stainless steel cable glands, Nickel plated cable glands, Reducer, Female connectors, EMT connectors, Non-jacketed metallic flexible conduit, PVC Jacketed metallic flexible conduit, Liquid-tight metallic flexible conduit, Explosive-proof conduit, Interlocked / squarelocked stainless steel flexible conduit and Nylon conduit.
