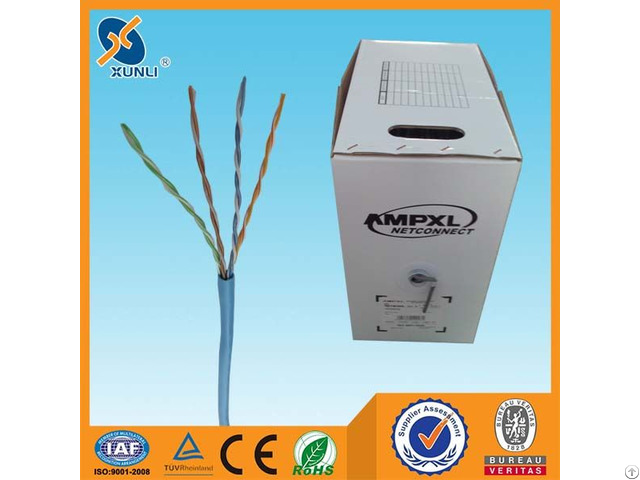

Network Lan Cable Fluke Pass Cat5e Utp Indoor Pull Box - China

price: 40.00 Dollar US$

Specifications

Name AMPXL Cat

UTP 5e

Code 500

Structure

Wires solid copper conductors

Ø 0.50 mm (24 AWG)

Wire insulation HDPE

Sheath PVC (gray/ blue)

Outer diameter [mm] 5.0 ±0.3

Copper content [kg/km] 14.9

Weight [kg/km] 28.5

Electrical parameters

Impedance [Ω] 100 ±15

Capacitance of any transmission path at 1kHz [nF/km] 50 ±1

Nominal Velocity of Propagation (NVP) [%] 67

Resistance of any transmission path [Ω/km] ≤ 188

Asymmetry in capacitance of transmission paths to the ground [pF/km] ≤ 1600

Insulation resistance [MΩ/km] > 500

Installation and operation

Operating temperature range [°C] -20.

+70

Operating humidity range [%] 0.100

Installation temperature range [°C] 0.

+50

Minimum bending radius [radius to diameter ratio] >8

The results of the measurements of the U/UTP kat.

5e cable conducted by the

National Institute of Telecommunications in Shenzhen, China

Pair resistance and resistance asymmetry testing.

Cable Pair Wire Wire resistance [Ω/km] Resistance asymmetry [%]

UTP cat.

5e 1 a 92, 726 0, 35

b 93, 054

2 a 94, 662 0, 34

b 94, 982

3 a 96, 228 0, 55

b 96, 755

4 a 96, 107 0, 39

b 95, 733

Required - - <150 ≤3, 0

Effective capacitance and capacitance asymmetry testing.

Cable Pair Effective capacitance [nF/km] Capacitance asymmetry [pF/km]

UTP cat.

5e 1 47, 35 77

2 44, 87 132

3 45, 71 36

4 46, 70 5

Required - - ≤1600

Insulation testing.

Cable Pair Wire Insulation resistance [MΩ/km]

UTP cat.

5e 1 a 8, 8·104

b 1, 2·105

2 a 9, 0·104

b 1, 6·105

3 a 8, 1·104

b 2, 0·105

4 a 7, 5·104

b 1, 1·105

Required - - ≥50

Tests of electric strength of insulation.

Test method Test voltage VAC

Applied (passed) Required

Voltage applied between connected in parallel all a wires and all b wires 1000 1000

End-to-end attenuation testing.

Cable Pair Effective attenuation [dB]

UTP cat.

5e 1 22, 9

2 22, 8

3 21, 5

4 21, 2

Required - ≤24, 9

Near End Cross Talk (NEXT) testing.

Cable Pair to pair NEXT [dB]

UTP cat.

5e 1 - 2 43, 5

1 - 3 47, 9

1 - 4 45, 3

2 - 3 44, 9

2 - 4 47, 8

3 - 4 41, 4

Required - ≥34, 0

Return loss testing.

Cable Pair Return loss [dB]

UTP cat.

5e 1 20, 8

2 21, 2

3 20, 9

4 19, 9

Required - ≥19, 4

Total Near End Cross Talk (PS-NEXT) testing.

Cable Pair PS-NEXT [dB]

UTP cat.

5e 1 36, 94

2 33, 93

3 33, 63

4 35, 44

Required - ≥31, 0

Transmission parameters

The parameters show that AMPXL U/UTP 5e fulfills all requirements for Category 5e cables, with a large safety margin.


Company Contact:


  • Phone: 86-13554871524

  • Address: No.8, Cuilong Road,Baolong Industrial Estate, LongGang District, Shenzhen , Guangdong , China

  • Email: Email


Published date: July 22, 2016

  • Business Description: We are a modern manufacturer of various kind of cables, it specialists in production, sales and service of digital communication cable, security cable, power cable, Audio/Video cable and so on.
