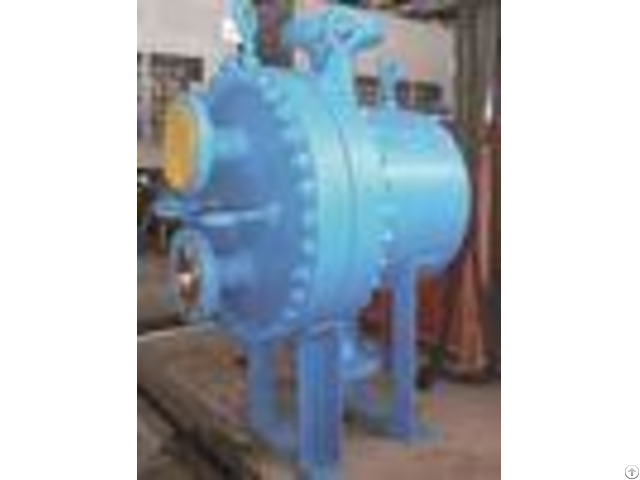

Nickel Basied Alloy Plate Shell Heat Exchangers For High Pressure And Wide Temperature Range Working - China
price: check with company for price
Nickel Basied Alloy Plate Shell Heat Exchangers For High Pressure & Wide Temperature Range Working Plate & Shell Heat Exchanger This type of heat exchanger comprises a fully-welded plate sheet bundle to be mounted in a pressure vessel.
Advantages * The corrugated plate sheet bundle is automatically plasma welded into a pressure vessel.
* The corrugated plate structure makes the heat transfer coefficient to be higher than the normal tube & shell heat exchanger.
* The plates are fully welded without any gasket, so that the heat exchanger can be more suitable for critical working condition.
* Working condition: -200 ~ 450 C / up to 10Mpa.
* Application: Especially suitable for high pressure and wide temperature range circumstance.
Specifications - - - - Model | QYS25 | QYE50 | QYS80 | QYS100 | QYS150 | QYS200 | QYS300 | Plate sheet dia (mm) | 190 | 300 | 450 | 580 | 760 | 1050 | 1420 | Single plate sheet area (m2) | 0.032 | 0.076 | 0.16 | 0.26 | 0.45 | 0.8 | 1.55 | Dia of connecting tube at shell side (mm) | 25-80 | 25-250 | 25-250 | 25-350 | 50-500 | 50-550 | 50-700 | Design pressure (Mpa) | 2.5, 4.0, 6.0, 10.0 | Thickness of plate sheet (mm) | 0.8, 1.0, 1.2 | Material | SUS316L, Ti, Nickel based alloy, etc.
| - - - - SMDERI provides professional services of design, fabrication, quality assurance and technical support, etc.
High quality, competitive price, excellent service are what we follow up.
Company Contact:
- Phone: 86-21-51151156
- Address: No. 3111, Huaning Road, Shanghai, 201108, P. R. China, Shanghai , Shanghai , China
- Email:
- Website: https://www.elevatedflaresystem.com
Published date: April 3, 2018
- Business Description: Shanghai Marine Diesel Engine Research Institute (hereafter called as SMDERI) located in Shanghai, P.
R.
China was founded in 1963 and under the jurisdiction of China Shipbuilding Industry Corporation and now is the sole national level research center on marine diesel engines in China.
