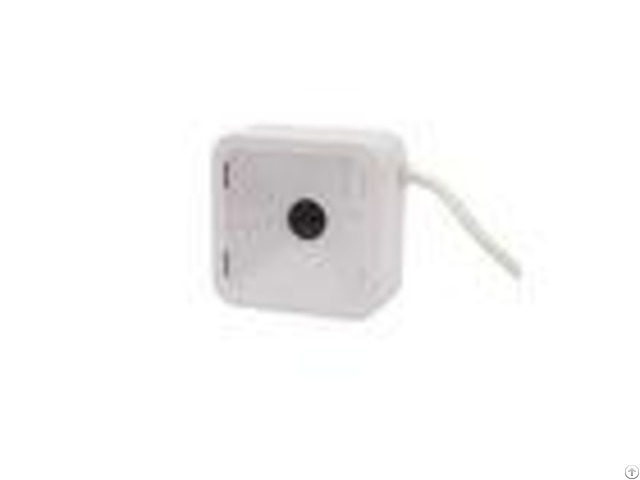

Omni Directional Automatic Barcode Scanner Rs232 Usb Interface Large Viewing Angle - China

Product Description RS232/USB 60CM/S CMOS cheap omni directional barcode scanner DP8120 is a professional embedded 2D scanning platform, can read various screen brightness of the phones 1D 2D barcodes.

Large window design, large viewing angle, support all kinds of screen size mobile phones.

Excellent performance provides users with very comfortable using experience.

Features Professional mobile phones barcode scanning, support various sizes, different screen brightness of phones, can be used to read various sticking mobile phones.

Ultra-sensitive auto sense scanning, built-in ultra-sensitive sense module, scan barcodes quickly.

Large window design, large viewing angle of 115 * 90, ultra-thin fashion design, can be easy to integrate into a limited space.

Soft lighting, soft, not dazzling.

Support interface: USB, RS232 - Support secondary development.

Parameter - - - - Physical Parameter | | Weight | 95g(without cable) | Dimension | L67.7mm * W67.7mm * H35.3mm | Interface type | USB, DB9 | Communication way | USB(USB-KBW, USB-COM), RS232 | Power supply | DC 5V@220mA(work) | Performance | | Scan type | CMOS | Light source | Red light LED 62510nm(aim), 6500K LEDs(lighting) | CPU | 32-bit | Resolution | 640*480 | Resolution | 4mil/0.1mm(PCS90%, Code 39) | Scan tolerance | 60CM/S | Depth of field | 0mm-100mm | Scan mode | Manual, Auto sense | Scan angle | Roll360, Pitch60, Skew60(PCS90%, Code 39, 10mil/0.25mm) | Print contrast signal | 20% | Ambient light | Dark, Indoor natural light | Symbologies | 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA), Codabar(NW-7), MSI Plessey, RSS, China Post, Telepen, etc.

2D: QR Code, Data Matrix, PDF417, Maxicode, Aztec, Hanxin, etc.

| Environmental | | Operating temperature | -20 to 50 | Storage temperature | -40 to 70 | Humidity | 5% to 95%(non-condensing) | Drop Height | 1.5m | Transport vibration Test | 10H@125RPM | Depth of field | | 4MIL | 0-30mm (PCS90%, Code 39) | 13MIL | 5-80mm (PCS90%, EAN-13) | 20MIL | 5-100mm (PCS90%, Code 39) | 10MIL | 5-20mm (PCS90%, Data Matrix) | 20MIL | 0-100mm (PCS90%, QR Code) | Mountings list | | Data cable | USB cable, used to connect the DP8120 and the information receiving host | | RS232 cable, USB cable, used to connect the DP8120 and the information receiving host, USB for charging | - - - - Application Widely used in industry, commerce, transportation, finance, medical and health, tobacco industry, mobile payment and office automation.

Packing & Delivery Package Size : 80*105*107mm Size: 67.7*67.7*35.5mm Weight: 95g(without cable) Our Company DongGuan Ding Feng Intelligent Electronic Technology CO., Ltd. was located in DongGuanCity, is a research and development, production, sale and service of high-tech enterprises.

Our company specializes in producing industrial and commercial barcode identification equipment, such as OEM Scan Engine, Fixed Mount Barcode Scanner, Handheld Barcode Scanner, Intelligent Barcode Scanner, High-speed image scanner etc.

Widely used in industry, commerce, transportation, finance, medical and health, tobacco industry, mobile payment and office automation.

We have CE, RoHS, FCC, ISO9001, ISO14001, IP54 etc., and pass Grade I National Standard for Laser Safty certification.

Our customers spreads across Southeast Asia, Middle East, Europe, North and South America, Oceania, Africa.

We commit ourselves to delivering the best products and services to our customers.

FAQ Q: Can i make a trial or sample order before ordering? A: Yes, sure Q: How can i print my logo on scanner? how much ? A: Firstly, pls inform us your logo and printing position expected, then we will make sample for your confirmation shortly The cost depends on some factors.

Q: Can we have our logo or company name to be printed on the product or package? A: Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing, please contact us for more details.

Q: How about your warranty? A: The buyer will enjoy 1 year warranty since buying from us Q: If the scanner not working, how can we do ? A: pls contact and inform related sales representative with the issues you have
