Portable 1d Barcode Scan Engine Usb Rs232 Interface Automatic Sense - China

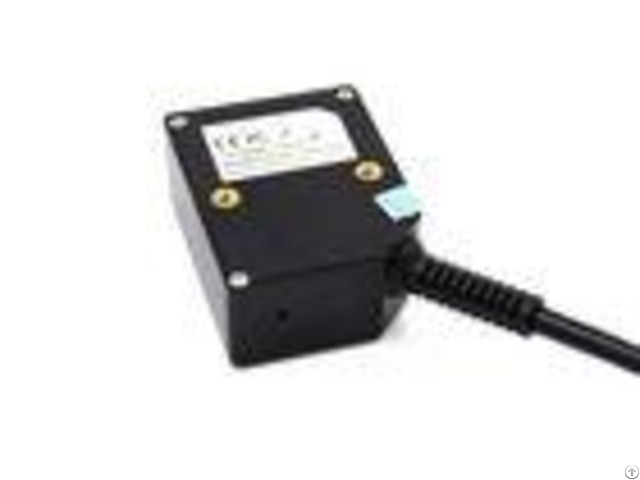

300 scan-rate per second 1D fixed scanner in various major barcodes Product Description DF3100 is a high performance fixed mount scanner with leading CCD image recognition technology and intelligent image recognition system.

It can scan universal 1D codes, read the paper, goods, screens, other media barcodes.

Compact design, can be easily embedded in all kinds of equipment.

Widely used in various self-service machines, industrial lines, etc.

Features Simple structure, widely used in self-service selling machines.

Read all mainstream 1D barcodes in the market easily.

High-performance processor, fast decoding.

(3mil) Interface: USB, RS232 Support multiple systems and languages.

Application Lockers Mobile coupons, tickets Medical research Mobile payment barcode scanning Lottery machines Self-service terminals Queuing calling equipment Self-service vending machines Microcontroller development - - - - Physical Parameter | | Weight | 80g(USB) | Dimension | (L)49.2mm * (W)37.5mm * (H)20.0mm | Interface Type | USB, DB9 | Communication Mode | USB(USB-KBW, USB-COM), RS232 | Power Supply | DC 5V@80mA(work) | Performance | | Scan Type | Linear CCD | Light Source | Visible red light, 62510nm | CPU | 32-bit | Resolution | 2500 | Resolution | 3mil/0.076mm(PCS90%, Code 39) | Decoding speed | 300times/s | Depth of field | 30mm-700mm | Scan Mode | Manual, Continuous, Auto sense, flashing | Scan Angle | Roll30, Pitch60, Skew60(PCS90%, Code 39, 10mil/0.25mm) | Print Contrast Signal | 20% | Ambient Light | Dark, indoor natural light | Symbologies | UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA), Codabar(NW-7), Plessey, MSI Plessey, RSS, China Post, etc.

| Environmental | | Operating temperature | -20 to 50 | Storage temperature | -40 to 70 | Humidity | 5% to 95%(non-condensing) | Drop Height | 1.5 meters | Transport vibration Test | 10H@125RPM | Depth of field | | 3MIL | 80-120mm (PCS90%, Code 39) | 13MIL | 30-320mm (PCS90%, EAN-13) | 20MIL | 30-450mm (PCS90%, Code 39) | 40MIL | 130-700mm (PCS90%, Code 39) | Accessories List | | Cable(non-removable) | USB Cable, used to connect the DF3100 to a host device.

RS232 Cable, used to connect the DF3100 to a host device, with USB power feeder.

| Power Adaptor | Output: DC5V 1A, Input: AC100~240V 50~60Hz(serial port optional).

| - - - - Packing & Delivery Package Size : 188mm L * 95mm W * 40mm H Size: (L)49.2mm * (W)37.5mm * (H)20.0mm Weight: 80g(without cable) FAQ 1 - What's the shipping way ? A: There are DHL, Fedex, TNT, UPS.

We also can ship the goods by your shipping account or other express agent you provided.

2 - What's the payment way ? A: We accept PayPal, T /T, LC, Western Union, .

3 - How about your product warranty ? A: Our officially promised warranty time is 1 years after delivery.

4 - Is OEM or ODM available? Yes.

We are the factory directly.

We can make it as your requirement.

With well packed carton by foam and plastic film to advoid goods damage.

5 - where I can get the support ? A: We support you technically 24h
