Portable Mini Barcode Scan Engine For Lockers Self Service Machine - China

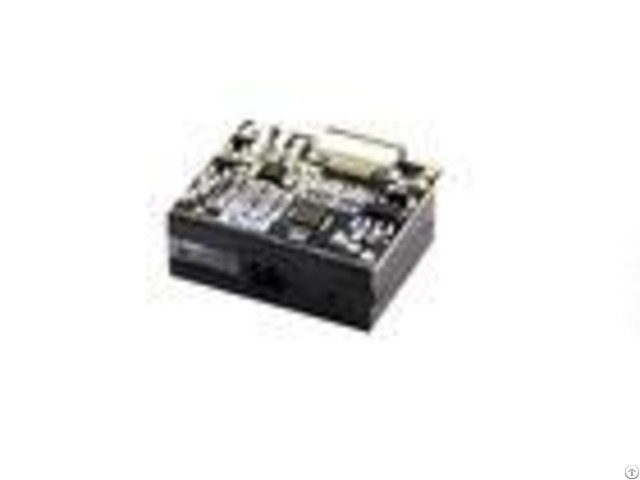

Mini Barcode Scanner Module Engine 1D CCD Barcode Scanner with USB/RS232Features1 It has a Simple structure, widely used in lockers, self-service machines.

2 Read all mainstream 1D barcodes, like barcodes in the market .

3 High-performance processor, fast decoding.

4 4 interface can be choose: USB, TTL, RS232

5 It can support multiple systems and languages, Customer-defined development based on customer requirements.

6 It is used in various types of SCM, locker, self-service equipment etc.

Quick Details# Place of Origin: Guangdong, China (Mainland)

# Brand Name: DYscan

# Model Number: DE1300

# Scan rate: 300 times / sec

# Resolution: 1500

# Interface Type: USB, TTL

# Color bit: 32bit

# Scan the component type: CCD

# Certification: CE, FCC, RoHS

# port: Shenzhen

# Products Status: Stock

# Colour Depth: 32bit

Packaging & Delivery

- - - -

Packaging DetailsPackaging Details

Single package size: 188mm L * 95mm W * 40mm H | Delivery Time7 | - - - - scan module CCD 1d oem Embedded barcode module - - - -

Product Name | Barcode scanner DE1300 | Interface Type | FFC 12PIN Pitch 0.5 | Communication Mode | USB(USB-KBW, USB-COM), TTL, PS2 | Power Supply | DC 3.3-5V@50mA(work) | Light Source | Visible red light, 62510nm | Scan Type | Linear CCD | CPU | 32-bit | Resolution | 1500 | Scan Tolerance | 300times/s | Depth of field | 60mm-500mm | Scan Mode | Manual, Continuous, Flashing | Scan Angle | Roll30, Pitch50, Skew50(PCS90%, Code 39, 10mil/0.25mm) | Print Contrast Signal | 25% | Ambient Light | Dark environment, indoor natural light | Symbologies | UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA), Codabar(NW-7), Plessey, MSI Plessey, RSS, China Post, etc.

| Environmental | Operating temperature | -20 to 50 | Storage temperature | -40 to 70 | Humidity | 5% to 95%(non-condensing) | Drop Height | 1.2 m | Transport vibration Test | 10H@125RPM | | | Depth of field | 4MIL | 100-120mm (PCS90%, Code 39) | 13MIL | 60-240mm (PCS90%, EAN-13) | 20MIL | 70-350mm (PCS90%, Code 39) | 40MIL | 150-500mm (PCS90%, Code 39) | Accessories List | Cable(Optional) | USB Cable, used to connect the DE1300 to a host device.

RS232 Cable, used to connect the DE1300 to a host device, with USB supply cable.

PS2 Cable, used to connect the DE1300 to a host device and keyboard input device.

| Power Adaptor | Output: DC5V 1A, Input: AC100~240V 50~60Hz(serial port optional).

| Development board( optional) | Equipped with a trigger button, beeper and RS-232 & USB output function.

| - - - - RFQ

Q: Can i make a trial or sample order before ordering?

A: Yes, sure

Q: How can i print my logo on scanner? how much ?

A: Firstly, pls inform us your logo and printing position expected, then we will make sample for your confirmation shortly The cost depends on some factors.

Q: Can we have our logo or company name to be printed on the product or package?

A: Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing, please contact us for more details.

Q: How about your warranty?

A: The buyer will enjoy 1 year warranty since buying from us Q: If the scanner not working, how can we do ?

A: pls contact and inform related sales representative with the issues you have
