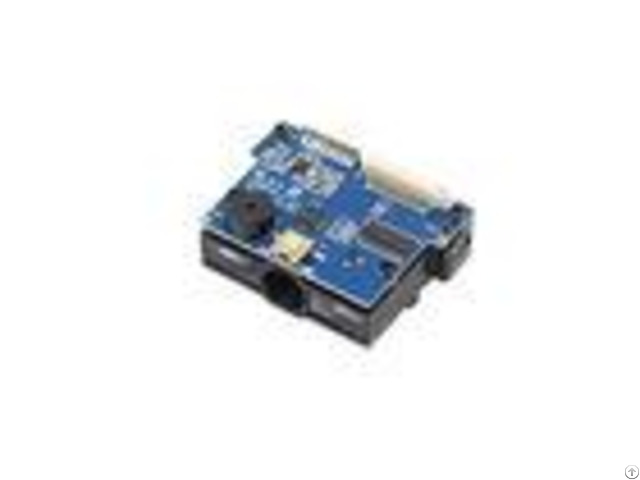

Price Checker Scan Engine High Sensitive 1d Small Barcode Scanner Module - China

Quick Details# Products Status: Stock

# Type: Barcode Scanner, Barcode Scanner Module

# Scan Element Type: CCD

# Colour Depth: 32 Bit

# Interface Type: PS/2, USB, RS232

# Max Paper Size: A4 Size

# Optical Resolution: 2500

# Scan Speed: 135 Scans/sec

# Brand Name: dyscan

# Model Number: DE1200

# Place of Origin: Guangdong, China (Mainland)

# Light Source: Visible Red light 632n

# Linear: CCD Sensor

# Interface: RS232, USB, KB

# Dimension: 44 mm W x 30 mm D x 19.2mm H

# Body Weight: 16g

# Cable Weight: 50g

# Voltage: 5V DC

# Symbologies: All 1D barcodes

# Reading Distance: 230mm@20mil/0.5m m, PCS90%

Packaging & Delivery

- - - -

Packaging Details1 Barcode Scanner Module with 1 Connection Cable(USB, RS232 or KB) | Delivery TimeWithin 3 Work Days after Receiving Payment | - - - - DE1200 Barcode Scanner Module Interface Select: USB or RS232 or PS/2

Compatible OS: Android, Windows, Linux

Projects: Electronic Mailbox, Locker, Price Checker, POS Terminal, etc.

- - - -

Product Name | Barcode scanner DE1200 | Interface Type | 11PIN Pitch 1.25 | Communication Mode | USB(USB-KBW, USB-COM), TTL, RS232, PS2 | Power Supply | DC 5V@100mA(work) | Light Source | Visible red light, 62510nm | Scan Type | Linear CCD | CPU | 32-bit | Resolution | 2500 | Scan Tolerance | 300times/s | Depth of field | 30mm-700mm | Scan Mode | Manual, Continuous, Auto Sense, Flashing | Scan Angle | Roll30, Pitch60, Skew60(PCS90%, Code 39, 10mil/0.25mm) | Print Contrast Signal | 20% | Ambient Light | Dark environment, indoor natural light | Symbologies | UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA), Codabar(NW-7), Plessey, MSI Plessey, RSS, China Post, etc.

| Environmental | Operating temperature | -20 to 50 | Storage temperature | -40 to 70 | Humidity | 5% to 95%(non-condensing) | Drop Height | 1.2 m | Transport vibration Test | 10H@125RPM | | | Depth of field | 5MIL | 80-120mm (PCS90%, Code 39) | 13MIL | 30-320mm (PCS90%, Code 39) | 20MIL | 30-450mm (PCS90%, Code 39) | 40MIL | 130-700mm (PCS90%, Code 39) | Accessories List | Cable(Optional) | USB Cable, used to connect the DE1200 to a host device.

RS232 Cable, used to connect the DE1200 to a host device, with USB supply cable.

PS2 Cable, used to connect the DE1200 to a host device and keyboard input device.

| Power Adaptor | Output: DC5V 1A, input: AC100~240V 50~60Hz(serial port optional).

| - - - -

FAQ

Q: Can i make a trial or sample order before ordering?

A: Yes, sure

Q: How can i print my logo on printer? how much ?

A: Firstly, pls inform us your logo and printing position expected, then we will make sample for your confirmation shortly The cost depends on some factors.

Q: Can we have our logo or company name to be printed on the product or package?

A: Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing, please contact us for more details.

Q: How about your warranty?

A: The buyer will enjoy 1 year warranty since buying from us

Q: If the scanner not working, how can we do ?

A: pls contact and inform related sales representative with the issues you have
