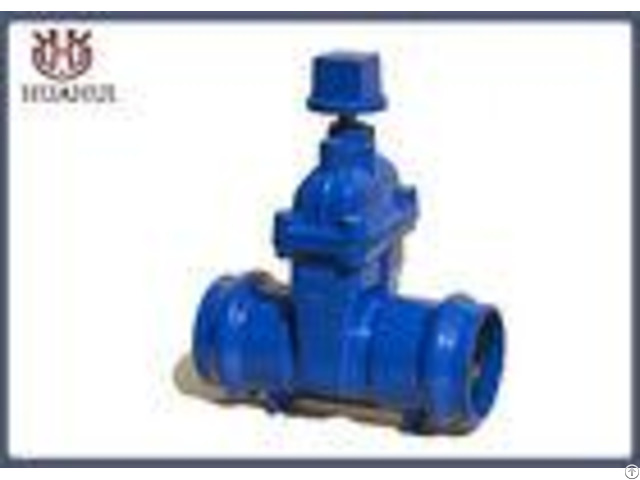

Pvc Pipe Socketed Resilient Seated Gate Valve Blue Color For Sewage Treatment - China
price: check with company for price
Use for PVC pipe socketed resilient seated gate valve DN50-DN300 Product Application The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation.
Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc.
and saves installation space.
It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.
Gate valve body materials: ductile iron Connect type: socketed Pressure: PN16 Size: 63mm, 75mm, 90mm, 110mm, 160mm, 200mm, 225mm, 250mm, 315mm Seal: resilient seat Coating: blue epoxy powder outside and inside of the gate valve - - - - Specifications | Size | DN40-DN1200 | End flange | DIN/BS/ANSI/JIS | Face to face | DIN/BS/ANSI/AWWA | Main Parts and Materials | Body | Cast Iron/ Ductile Iron | Wedge | Cast Iron/Ductile iron with EPDM/NBR | Stem | Brass/Stainelee Steel | Bonnet | Cast Iron/ Ductile Iron | Bolt & Nut | Stainless Steel Steel with zinc.
| Surface | Expoxy Powder Coated Min.
250 Micron.
Or Painted | Applications | Temperature | 120C | Medium | water, wastewater, seawater, oil gas, air, steam, foodstuff, medicine, acids, etc | Test | Working pressure | PN10, PN16, PN25 | Shell pressure | 1.5Mpa, 2.4Mpa, 27.5Mpa | Seat pressure | 1.1Mpa, 1.76Mpa, 37.5Mpa | - - - -
Company Contact:
- Posted By: HEBEI HUAHUI VALVE COMPANY
- Phone: 86-317-4583000
- Address: No.4 Road of Botou Industrial Zone, Cangzhou City,Hebei Province,China, Cangzhou , Hebei , China
- Email:
Published date: February 6, 2018
- Business Description: We have two engineers to solve the guests technical problem.
At the same time, we have 65 workshop colleagues who can process the products in the first time and give the best delivery time.
For the qulity control, we have three people to check the qulity before the goods ship to our customer.
