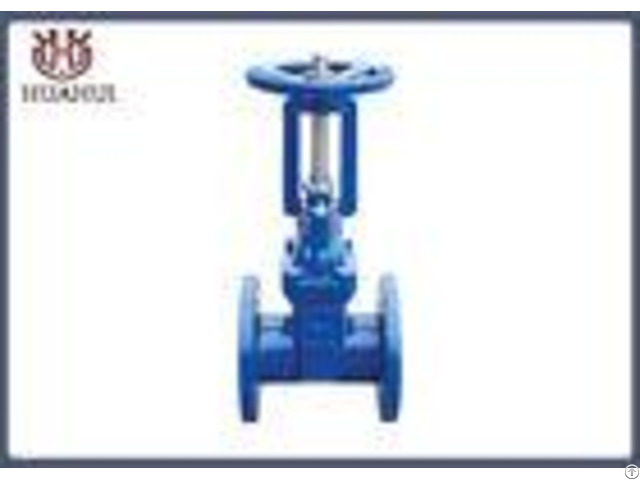

Rising Stem Resilient Seated Gate Valve Rubber Seal With Bs5163 Standard - China
price: check with company for price
Rising stem resilient seated gate valve BS5163/DIN3352 BS 5163 Rising stem resilient wedge gate valve is used the stem lifting the disc to control the open and close.
It can see the open throught the stem.
Rising stem gate valves require enough installation space.
Specification Valve Standard: BS EN 13789 BS 5163 Nominal diameter: 2"-48"/DN50DN600 Working pressure: PN10/16Bar Face-to-face: EN558 Series10 Connection: BS EN1092-2 PN10 / PN16 flange drill.
Tightness check: API 598 ISO 5208 EN12226-2 Epoxy fusion coating.
Pressure and temperature - - - - working pressure | PN10/PN16 | testing pressure | Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure.
| working temperature | -10C to 80C (NBR) -10C to 120C (EPDM) | suitable media | Water, Oil and gas.
| - - - - Materials: - - - - No.
| Part | Material | 1 | Body | Ductile iron | 2 | Bonnet | Ductile iron | 3 | Wedge | Ductile Iron | 4 | Wedge coating | EPDM / NBR | 5 | Gasket | NBR | 6 | Stem | (2 Cr13) X20 Cr13/SS431/SS304 | 7 | Stem nut | Brass | 8 | Fixed washer | Brass | 9 | Body bonnet Bolt | Steel 8.8 | 10 | O Ring | NBR / EPDM | 11 | Hand wheel | Ductile iron / Steel | - - - -
