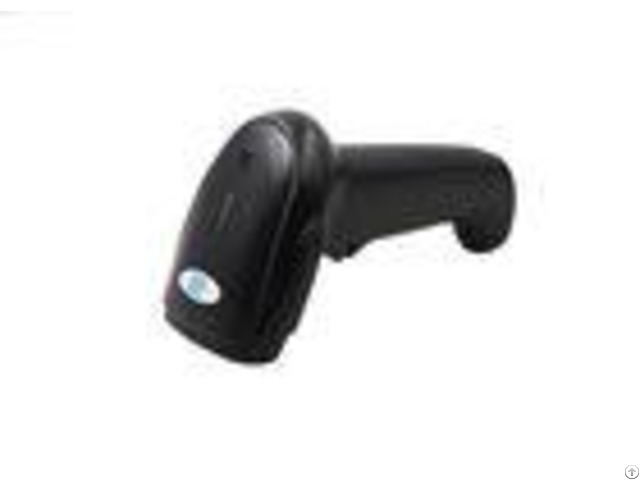

Rs232 Usb Supermarket 1d Red Light Scanner 300 Scans Sec Scan Speed Ds5100 - China
price: check with company for price
Product Description 2500 Resolution small micro usb cheap barcode scanner DS5100 is a high-performance 1D barcode scanner with leading CCD image recognition technology.
It can easily read the paper, goods, screen and other media barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory, etc.
Features Ergonomic design, comfortable using.
High-performance processor, fast decoding.
Support multiple languages and systems.
Support interface: USB.
Support customization of POS interface.
- - - - Physical Parameter | | Weight | 110g(without cable) | Dimension | L150mm * W70mm * H95mm | Interface Type | USB | Communication method | USB(USB-KBW, USB-COM), RS232 | Power supply | DC 5V@80mA(work) | Performance | | Scan type | Linear CCD | Light source | Visible red light, 62510nm | CPU | 32-bit | Resolution | 2500 | Resolution | 3mil/0.1mm(PCS90%, Code 39) | Decoding speed | 300 times/s | Depth of field | 10mm-600mm | Scan mode | Manual, Continuous, Auto sense | Scan angle | Roll30, Pitch60, Skew60(PCS90%, Code 39, 10mil/0.25mm) | Print contrast signal | 20% | Ambient light | Indoor natural light | Symbologies | UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA), Codabar(NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
| Environment parameter | | Operating temperature | -10 to 50 | Storage temperature | -30 to 60 | Humidity | 5% to 95%(non-condensing) | Drop Height | 1.5m | Transport vibration Test | 10H@125RPM | Depth of field | | 3MIL | 60-100mm (PCS90%, Code 39) | 13MIL | 10-320mm (PCS90%, EAN-13) | 20MIL | 10-430mm (PCS90%, Code 39) | 40MIL | 110-600mm (PCS90%, Code 39) | Accessories list | | Data cable | USB, connect the scanner to a host device.
| | RS232, connect the scanner to a host device, with USB supply cable.
| - - - - Application Supermarket, Warehouse, Mobile payment, Retail chain, Courier, Health care Packing & Delivery Package Size : 220*100*75mm Size: L150mm * W70mm * H95mm Weight: 110g(without cable) Our Company DongGuan Ding Feng Intelligent Electronic Technology CO., Ltd. was located in DongGuanCity, is a research and development, production, sale and service of high-tech enterprises.
Our company specializes in producing industrial and commercial barcode identification equipment, such as OEM Scan Engine, Fixed Mount Barcode Scanner, Handheld Barcode Scanner, Intelligent Barcode Scanner, High-speed image scanner etc., Widely used in industry, commerce, transportation, finance, medical and health, tobacco industry, mobile payment and office automation.
We have CE, RoHS, FCC, ISO9001, ISO14001, IP54 etc., and pass Grade I National Standard for Laser Safty certification.
Our customers spreads across Southeast Asia, Middle East, Europe, North and South America, Oceania, Africa.
We commit ourselves to delivering the best products and services to our customers.
FAQ Q: Can i make a trial or sample order before ordering? A: Yes, sure Q: How can i print my logo on scanner? how much ? A: Firstly, pls inform us your logo and printing position expected, then we will make sample for your confirmation shortly The cost depends on some factors.
Q: Can we have our logo or company name to be printed on the product or package? A: Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing, please contact us for more details.
Q: How about your warranty? A: The buyer will enjoy 1 year warranty since buying from us Q: If the scanner not working, how can we do ? A: pls contact and inform related sales representative with the issues you have
