Scgp Pulverized Coal Burner For High Efficiency Syngas Production - China

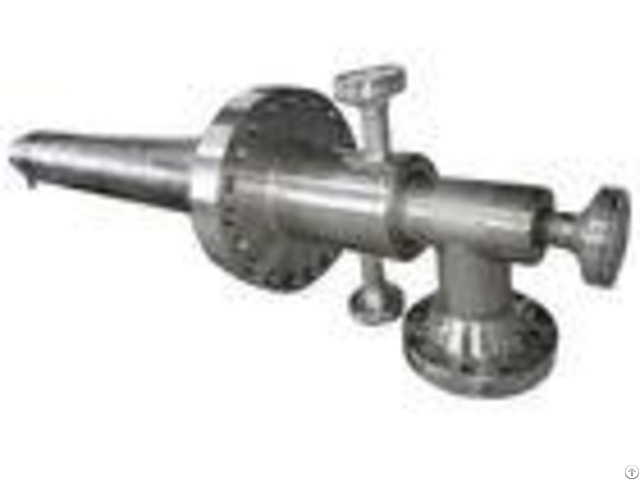

SCGP Pulverized Coal Burner For High Efficiency Syngas Production SCGP coal burner is the critical equipment of shell coal gasification processand functions to deliver pulverized coal and oxygen and steam into the coal gasifier, which are atomized in the high temperature high pressure environment as desired by the gasification process in order to achieve high efficiency gas production.

The burners are located at the lower part of the gasifier in a symmetrical way, typically 4-6 burners, which are dependent on the gasifier type and the capacity.

The pulverized coal is sprayed from the central channel by the transportation gas while the oxygen and steam is from outer circular channels.

The outer shell is the cooling water jacket to cool down the burner head and enhance the heat exchange and thus extend the service life.

The burner is arranged in such a way that the pulverized coal will be sprayed and tangentially fired in an opposite direction so as to improve the combustion efficiency and the syngas composition.

- - - - Service | SCGP gasification unit | Specification | 900T, 2000T, 2700T | Material | Stainless steel, high nickel-base alloy steel | Fabrication standard | GB 150 | Service life | 8000hs | Warranty period | 12 months since operation | Work/service scope | Fabrication, shipping, commissioning, site installation instruction | - - - - The SCGP burner boasts the following advantages: 1) Numerical simulation calculation is done for the gasifier so as to achieve reasonable flow filed during gasification and improve the percentage of the syngas compositions at the gasifier exit; 2)Innovative dual channel forced cooling technology is adopted to ensure the burner head service life; 3)Strict production process to make sure precision production of SCGP burners to the micrometer level; 4)Prompt reaction to service request and engineer will be arrive site as soon as possible if necessary.

Enduser: Sinopec Anqing Company Capacity: 2000t/day According to the operating data 2014 form Sinopec Anqing Company, SCGP burner provided by SMDERI has been in continuous operation for as long as 251 days, which surpasses burners of the same process in China.

Users list ---Hubei Yichang Chemical Industry Group Co.

Ltd. ---Yueyang Sinopec & Shell Coal Gasification Co.

Ltd. ---Yunnan TianAn Chemical Industry Co.

Ltd. ---Henan Longyu Coal Chemical Industry Co.

Ltd. ---Henan Kaixing Chemical Industry Co.

Ltd. ---Henan Hebi Coal & Electricity Co.

Ltd. ---Guizhou Tianfu Chemical Industry Co.

Ltd. ---SinoPec Anqing Company ---Yunnan Yuntianhua Co.

Ltd. ---Yunnan Dawei Ammonia Co.

Ltd. ---Henan Zhongyuan Dahua Group Co.

Ltd. ---Tianjin Bohai Chemical Industry Co.

Ltd. Tianjin Soda Plant ---SinoPec Zhijiang Company ---Dahua Group Dalian Coal Industry Co.

Ltd.
