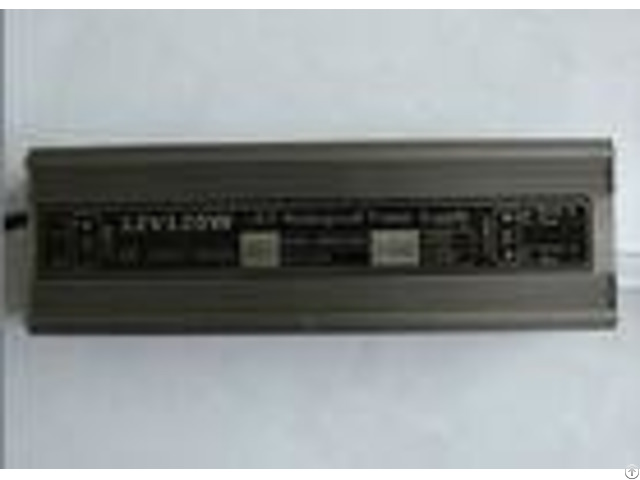

Small Single Output 120 W 12v Led Lighting Transformer Waterproof Ip67 - China

Single Output 120W 12V LED Lighting Transformer with 2 Years Warranty 1 - Specification - - - - - - - -

Model | - - - - | SJ120 - W1V12 | AC input voltage range | 100 - 264VAC 47 - 63HZ | Input Current | 2A / 115V ; 1A / 230V | AC inrush current | Cold - start current 40A / 230V | Leakage current | < 3.5 mA / 240VAC | Over load protection | 115 - 135 % hiccupmode, auto-recovery | - - - -

Over - voltage protection | - - - - | 115-135% Cut off the output, auto-recovery | Over - temp protection | 85% c Cut off the output, auto-recovery | IP grade | IP67 | Setup rise hold up time | 200ms 100ms 30ms | Withstand voltage | I / P - O / P: 1.5 KvAC 1 minute | | I / P - FG: 1.5 KvAC 1 minute | | O / P - FG: 0.5 KvAC 1 minute | Working temperature | ~ 40 c ~ + 80 c, 20% ~ 90% RH | Weight / packing / Size | 1.20kg, 15pcs / 17.50kg, 255*80*62mm | - - - - 2 - CompetitiveAdvantage: 1 - Price.

You buy from the factory directly, save cost in the middle.

2 - Quality.

The power supply main parts is producted by ourself, we can control the quality better.

3 - Professional.

Each employee through professional training.

4 - technology.

We have one excellent engineer design team with rich experience.

3 - Description Our factory is located in Shenzhen, China.

First, we guarantee each power supply use all new material; Second, all products from production start to shipment should go through 4 times 100% testing, namely: material test / semi-finished test / finished test / test before shippment.

Third, All of our drivers are 100% have been four hours of aging time.

We haveSM-268 ACTIVE load, Withstand voltage test, oscilloscope to test each power supply.

All of our power supply guarantee 2 years warranty and with CE & RoHS approved.

We believe that the quality is the soul of an enterprise.

Therefore, we always put the quality as the first consideration.

Thanks for your visit, welcome to contact us for details.

Wish we have the honor to cooperate with you!

Company Contact:

• Posted By: Shenzhen Faithful power technology Co.,Ltd

• Phone: 86-755-81773711

• Address: 4th Floor,Building 8,Xinxintian Industrial Park, Shajing town, Bao'an District, Shenzhen City, China, Shenzhen , Guangdong , China

• Email:

• Website: https://www.ledlightpowersupply.com

• Business Description: Company Strength: Company Scale is about 5000 square meters and more than 100 staff.

  We have switching Power Supply complete equipment for all production process.

  We also control a Scientific Standardized Management in both production and staff.
