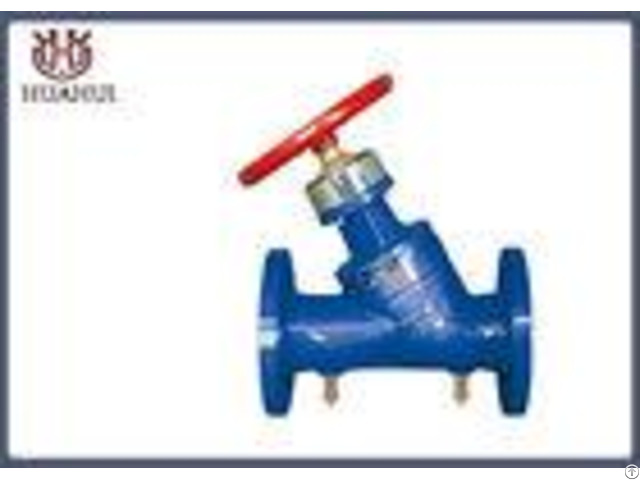

Spf Double Flange Flow Balancing Valve Digital Lock Energy Saving For Pipeline - China

SPF double flange Balance valveDigital lock balance water valve suitable Digital lock balance water valve suitable for various liquid pipeline systems, and is an ideal brand-new energy-saving valve, set with a scaled digital display and visually adjustable to any position and lockable.

Main used for the warming pipeline system of industrial and civil buildings.

It provides the means to settle such a problem existing in some pipe-net systems as the hydraulic imbalance and can accurately adjust both step-down and flow so as to improve the flowing status of the liquid inside of the pipe-net system to reach the target of the liquid balancing and energy saving.

Characteristics: digital lock balance valve structural features: The factory production of digital lock balance valve is a static hydraulic conditions balancing valves, with special features of the new energy-saving valve.

As the valve is provided with a turn on the digital display, digital locking device can be transferred to any location intuitive, and pressure for flow measurement of small valves.

Suitable for a variety of liquids pipeline system, is an ideal new energy-saving valve.

The valve is mainly used in industrial and civil heating piping systems.

In some systems currently exist in the pipe network hydraulic imbalance problem, balancing valve provides a solution to this always means it can accurately adjust the pressure drop and flow, to improve the flow of liquid in the pipe network system status, to the pipe network fluid balance and energy conservation purposes.

In the double-pipe network transformation, these valves can still save energy applied to obtain better results.

Performance specification : - - - - Model | SP15-10/16 | SP45F-10/16 | Test pressure | 2.4MPa | Working pressure | =1.6MPa | Working temperature | =120 | Suitable medium | Water, oil and other liquids | Performance curve | Equal percentage | - - - -
