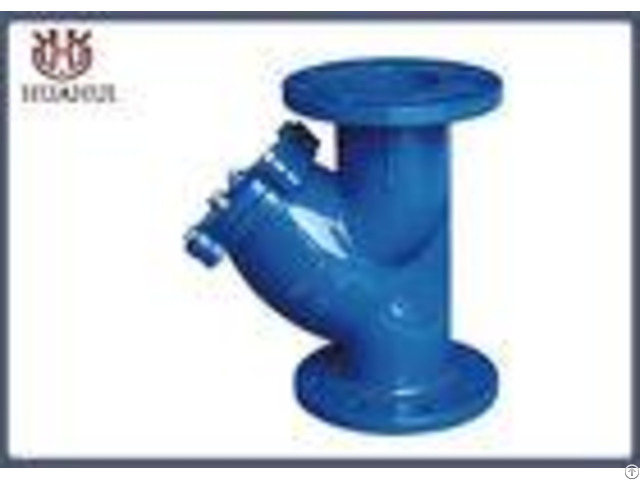

Ss420 Screen Y Type Strainer Ductile Iron For Water System Din3202 F6 Stanard - China

DIN3202 F6 Y type srainer with ss420/316 screen for water system Overview Y type strainer is an essential device for pipeline system.

It is usually fixed on the inlet of reducing valve, relief valve and lever control valve to clear away the impurity in the media, ensuring normal use.

The strainer is of features such as advanced structure, easy exhaust.

Applicable medium is water, oil and gas.

The spec.

Of water network is 18-30mesh/cm2, gas network is 40-100mesh/cm2 and oil network is 100-480mesh/cm2 - ADVANTAGE 1 - DIN Y type strainer is used to separate the impurity of media.

It can protect other equipment for a regular service.

2 - Stainless steel filter traps make a better performance and corrosion-resistance.

3 - Maintenance is easy.

All you need is just clean the filter traps.

Technical specification Design standard: DIN 3356 Face to face dimension: DIN 3202 Flanged ends: DIN 2543-2545 Test & inspection: DIN 3230 Main part materials - - - - NO.

| Part name | Material | 1 | Body | GS-C25, 1.4401, 1.4301 | 2 | Filter net | 1.4301, 1.4401 | 3 | Metal gasket | Stainless steel | 4 | Cover | GS-C25, 1.4301, 1.4401 | 5 | Nut | ASTM 194-2H, A194-8 | 6 | Double-headed bolt | ASTM 193-B7, A193-B8 | - - - - Main connection size Company Information COMPANY VIEW - - - - Hebei Huahui Valve Co., Ltd (Botou Yaxing Fluid Equipment Co., ltd) is located in Botou City Hebei Province, which is the famous "Casting Town in China", occupying 150000 square meters.

We specialize in designing and manufacturing various kinds of hudraulic control valve, gate valve, butterfly valve, check valve, Y strainer, HVAC balancing valve, air release valve, pipe fittings etc, which used in water supply and sewage system, | fire fighting system, and heating ventilation air conditioning system.

| - - - -
