Temperature Boosting Absorption Heat Pump Low Pressure Steam Hot Water Driving Energy - China

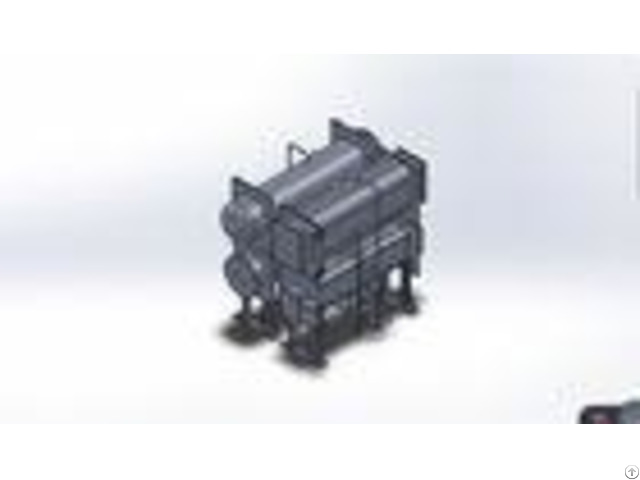

Temperature Boosting Absorption Heat Pump Low Pressure Steam / Hot Water Driving Energy Absorption Heat Pump Absorption Heat Pump is a heating unit powered by heat energy (steam, hot water or directly-combusted natural gas) to transfer low-potential heat energy to high-potential heat energy, with LiBr as an absorbent and water as a coolant, which is used for home heating or process heating.

Absorption Heat Pump comprises primarily generator, condenser, evaporator, absorber, heat exchanger, automatic gas pump system, vacuum pump and canned pump.

Compared with the compression heat pump, Absorption Heat Pump has the advantages of a larger capacity, lower operation cost, higher reliability, etc.

TAH --- Temperature-boosting Absorption Heat Pump Inlet waste heat: Exhaust heat in temperature of 15-70 Driving energy: Low pressure steam, hot water, oil & gas, flue gas in temperature of over 250 Outlet hot water: 40 higher than inlet waste heat, less than 100 Heating capacity: 1, 000 - 60, 000 KW (3.5 times the driving energy consumption).

SAH --- Self-driven Absorption Heat Pump Inlet waste heat: Exhaust heat in temperature of over 70 Driving energy: None Outlet hot water or steam: 25 - 50 higher than inlet waste heat, less than 175 Heating capacity: 500 - 10, 000 KW.

Applications: As a heating unit for home heating or production process heating.

Available Service: Design, engineering, fabrication EP / EPC contractor.
