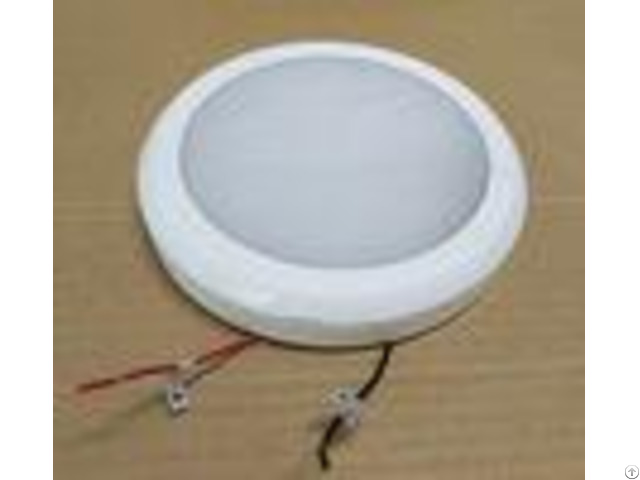

Ultra Thin Led Flat Panel Light Dc 12 24v Input Voltage For Indoor Only - China

Ultra Thin Round Dimmable LED Flat Panel Light For Yacht Bathroom Kitchen and Hotel, etc .

Features for Sunway SW-5807 LED Flat Panel Light: 1 - Equipped with 21pcs super bright LED light.

2 - Mean time between failure is mroe than 30, 000 hours.

3 - Class product, high degree of safety, use low safe voltage (DC effective value<36V).

4 - Adopt PWM signal stepless touch dimming, easy to operate and low power consumption.

5 - With powerfulSMD 2835 LED as light source, CRI can be up to more than 80 - 6 - High quality engineering PC plastic as case material, light weight and durable in use.

7 - This LED Flat Panel Light puts out maximum 110 lumens.

8 - Perfect replacement lights for the indoor of the pontoon boat.

9 - CE, FCC, RoHS listed.

Applications for Sunway LED Flat Panel Light: 1 - Indoor lighting for most pontoon, yacht, skeeter, touring car, fishing boat, speed boat and other boats.

Great boat accessories gifts.

2 - The LED Flat Panel Light is also perfect for home cabinet, bookcase lighting, work well as machine tool working lamp, light for children, etc.

Parameters for Sunway LED Flat Panel Light: - - - - Parameter | Specification | Model | SW5807 | LED quantity | 21PCS | Input Voltage | DC12-24V | Input Current | Max.

90mA | Power | Max.

2.0W | LED specification | SMD2835 | Luminous flux | 110Lm10% | CRI | Ra>80 | Light Efficiency | 60-70Lm/W | Color Temp | 2900-3100K | Beam Angle | 120 | Life Time | Longer than 30, 000 hours | Working Temp | -20~+45 | Storage Temp | -30~+70 | Cases Material | PC | Dimmer | PWM signal stepless touch dimming | Mounting | Screws: ST2.9*12-15, 3pcs | Product Size | 85*21mm | Weight | 73g | Package Size | 160*115*32mm/pc | Safety certification | CE, ROHS | - - - - Installation for Sunway LED Flat Panel Light: 1 - Remove the upper cover of the light as shown in the picture below.

2 - Use DC12-24V input voltage, connect the wires of the light correctly, please note about the positive and negative poles when do this.

3 - Use the screw ST2.9*12 or ST2.9*15 to fix, then clip the top cover well.

Delivery Time for Sunway LED Flat Panel Light: 1 - Sample: 3-5 days 2 - Wholesales Orders: 5-15 days according to various quantities 3 - OEM Orders: 7-10 days based on receiving your sample confirmation Caution: 1 - Make sure to use voltage DC12-24V.

2 - Please be sure to cut off the power when install and maintain.

3 - Make sure to read the instruction carefully before installation.

4 - For indoor use only.
