Usb 2d Desktop Barcode Scanner With Display Fixed Mount Auto Sense High Speed Dp8300 - China

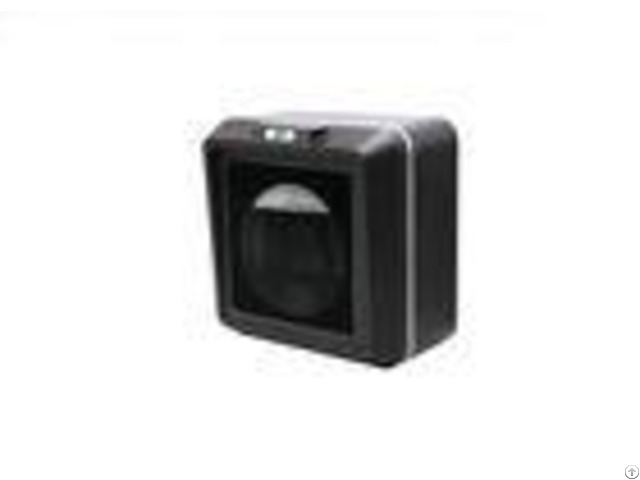

DP8300 2D High quality RS232 fixed mount barcode scanner with display Product Description DP8300 is a high performance platform with leading CMOS image recognition technology and intelligent image recognition system.

It can scan universal 1D 2D codes, read the paper, goods, screens, other media barcodes.

Compact design, beautiful appearance with efficient reading performance, provide users with excellent experience.

Features Image reading barcodes, read screen, paper, printing, black and white, color and other types of barcodes easily.

Read all 1D 2D mainstream barcodes in the market easily.

(4mil) Support USB barcode information transmission(languages customization).

1 million pixels, high speed moving reading.

Highly sensitive large window design, widely used in mobile payment, supermarket, chain stores.

Application Mobile payment Supermarket Courier - - - - Physical Parameter | | Weight | 725g(without cable) | Dimension | L88mm * W150mm * H150mm | Interface type | USB, DB9 | Communication way | USB, RS232 | Power supply | DC 5V@400mA(Work) | Performance | | Scan type | CMOS | Light source | Red light LED 62510nm(aim), 6500K LEDs(lighting) | CPU | 32-bit | Resolution | 1280*800 | Resolution | 4mil/0.1mm(PCS90%, Code 39) | Scan tolerance | 60CM/S | Depth of field | 0mm-500mm | Scan mode | Auto sense | Scan angle | Roll360, Pitch60, Skew60(PCS90%, Code 39, 10mil/0.25mm) | Print contrast signal | 20% | Ambient light | Dark, indoor natural light | Symbologies | 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Code 11, Interleaved 2 of 5, matrix 2of 5, industrial 2 of 5(IATA) Codabar(NW-7), MSI Plessey, RSS, China Post etc.

2D: QR Code, Data Matrix, PDF417, Maxicode, Aztec, Hanxin, etc.

| Environmental | | Operating temperature | -20 to 50 | - - - - - - - - Storage temperature | -40 to 70 | Humidity | 5% to 95%(non-condensing) | Drop Height | 1.5m | Transport vibration Test | 10H@125RPM | Depth of field | | 4MIL | 20-80mm (PCS90%, Code 39) | 5MIL | 15-80mm (PCS90%, EAN-13) | 20MIL | 20-250mm (PCS90%, Code 39) | 40MIL | 115-265mm (PCS90%, Code 39) | 20MIL | 45-165mm (PCS90%, QR Code) | Accessories list | | Data cable | USB cable, used to connect the DP8300 and the information receiving host | | RS232 cable, used to connect the DP8300 and the information receiving host, USB for charging | - - - -
