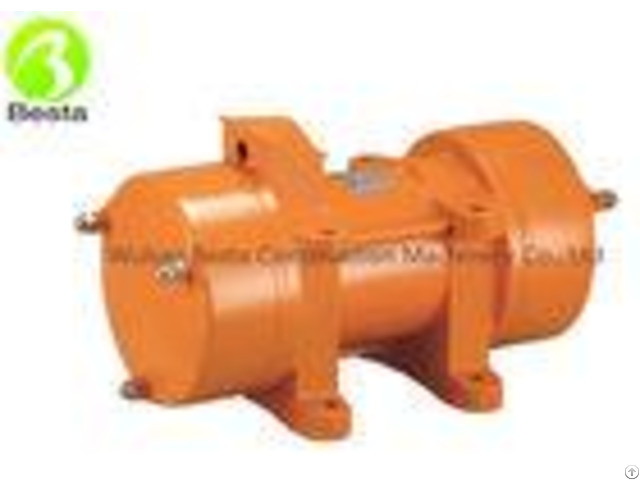

Vibration Motor Electric External Concrete Vibrator 250w Single Or Triple Phase - China

Application: Electric Vibrator Drive Mode and New Condition external concrete vibrator, mainly used in construction, building the plane vibration, dam, bridge, prefabricated concrete tamping Characteristics: 1 - ZFNew small electric concrete vibrator motor concrete table vibrator with excitation frequency, exciting force, small amplitude, concrete, plasticity increase liquidity, improve the component compactness, rapid prototyping, the construction quality can be greatly improved.

2 - ZFNew small electric concrete vibrator motor concrete table vibrator with a totally enclosed and high strength, and easy disassembly, repair, four core rubber cable for power line.

3 - ZFNew small electric concrete vibrator motor concrete table vibrator shell are made of cast iron, with three long bolts directly to each other tightly splice cover both ends, more reliable.

- - - - Model | Power Supply | Output Power | Vibrating Amplitude | Centrifugal Force | Current | Weight | | V/Hz | kW | mm | kN | A | kg | ZFT3 | 380/50 | 0.03 | 1.5 | 0.3-0 | 0.15 | 4.4 | ZFT9 | 380/50 | 0.09 | 2.1 | 1-0 | 0.19 | 4.4 | ZF18 | 380/50 | 0.18 | 2.3 | 1 | 0.37 | 7.5 | ZF25 | 380/50 | 0.25 | 1.8 | 1.8 | 0.67 | 12 | ZF55 | 380/50 | 0.55 | 1.64 | 4.15 | 1.3 | 21.5 | ZF80 | 380/50 | 0.8 | 2 | 2.6 | 1.74 | 27 | ZF110 | 380/50 | 1.1 | 2 | 4.3 | 2.52 | 27 | ZF150 | 380/50 | 1.5 | 2.4 | 8.3 | 3.18 | 38 | ZF220 | 380/50 | 2.2 | 2.2 | 10 | 4.6 | 46 | ZF300 | 380/50 | 3 | 2.2 | 14 | 6.4 | 57 | - - - -
