10kg Graduation Electronic Lorry Weighbridge 3 4 14m Steel Q235 Material High Strength - China

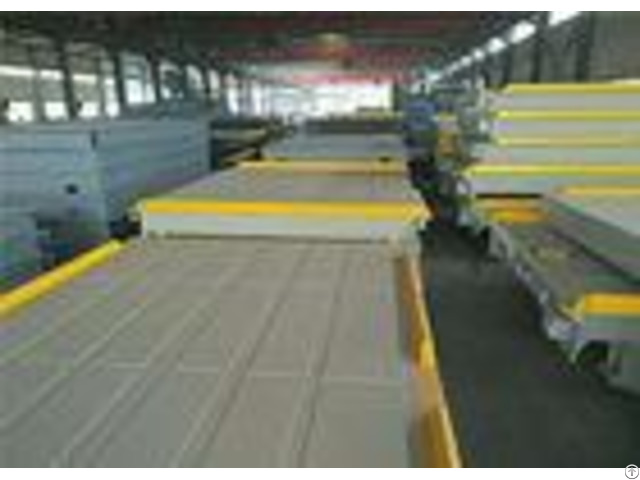

3.4*14m U Beam Electronic Lorry Weighbridge With Ramp 60 Ton Advantage 1 - Its longitudinal members compose of over 5 U-form beams made of Steel Q235, which provides overall strength and rigid support for scale platform and structure; 2 - outer cover is painted with marine paint--epoxy zinc rich primer and anticorrosive coat paint, which can prevent scale from acid, alkali and corrosion; 3 - signal sent by digital Load cell is at 4v stronger which can make sure a distant transmission and has a good ability of anti-jamming; 4 - you can choose terminal box and indicator in anti-explosion type to safeguard scale from danger 5 - pit foundation type is durable for long-term use; while pit less foundation type is convenient to install and uninstall, and easy to move from one place to another; 6 - Accuracy up to OIML III, tested by National Bureau of Quality and Technical Supervision of China; Parts and assembly The scale consists of three essential parts: weighing platform, load cell and indicator.

Besides computer, printer and unattended system are also selective to be equipped which can realize distant transmission and effective management of weighing date.

It is widely used in mining, metallurgy, construction, machine, chemical, iron and steel industries etc.

- - - - Item Type | Scs-10 | Scs-20 | Scs-30 | Scs-40 | Scs-50 | Scs-60 | Scs-80 | Scs-100 | Scs-120 | Scs-150 | Max Capability | 10 | 20 | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | Graduation(Kg) | 5 | 5 | 5 | 10 | 10 | 10 | 20 | 20 | 20 | 20 | Widthlength | Size(m) | | | | | | | | | | | 37 | Yes | Yes | Yes | Yes | | | | | | | 310 | | | Yes | Yes | | | | | | | 312 3.212 | | | | Yes | Yes | | | | | | 314 3.214 | | | | Yes | Yes | Yes | Yes | | | | 316 3.216 | | | | | Yes | Yes | Yes | Yes | Yes | Yes | 318 3.218 | | | | | | Yes | Yes | Yes | Yes | Yes | 320 3.220 | | | | | | | Yes | Yes | Yes | Yes | Remarks | 1, the above items with Yes are commended; other size or capability of item from customers can be also supplied; 2, different items with unequal number of U-shaped longitudinal members(beam).

Generally, scale of 3m width with 5 pcs, 3.2m with 6pcs, 3.4 with 7pcs.

| - - - -
