320w 36v Electrical Lighting Accessories Meanwell Pwm Dimming Led Power Driver - China

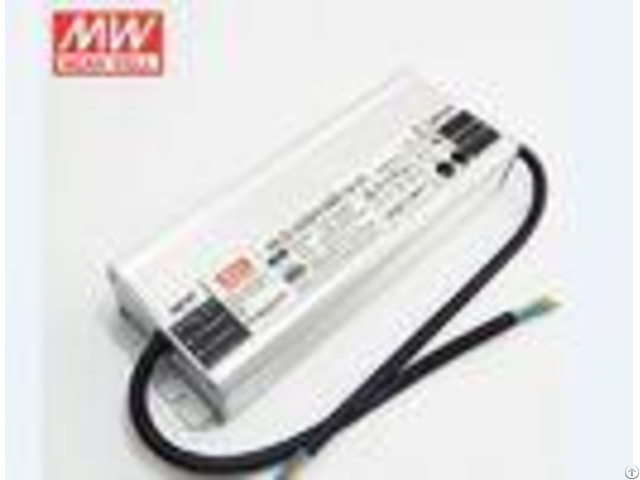

320W 36V Meanwell (MW) PWM dimming led driver HLG-320H-36A LED Power Supply Features: * Universal AC input / Full range (up to 305VAC) * Built-in active PFC function * Protections: Short circuit / Overload / Over voltage / Over temperature * Cooling by free air convection * OCP point adjustable through output cable .

or internal potential meter * IP67 / IP65 design for indoor .

or outdoor installations * Optional dimming function (1~10Vdc .

or PWM signal .

or resister) Suitable for LED lighting and moving sign applications Compliance to worldwide safety regulations for lighting * Suitable for dry / damp / wet location and outdoor application * 5 years warranty Specifications: - - - - MODEL | HLG-320H-12 | HLG-320H-15 | HLG-320H-20 | HLG-320H-24 | OUTPUT | DC VOLTAGE | 12V | 15V | 20V | 24V | C&C REGION | 6 ~12V | 7.5 ~ 15V | 10 ~ 20V | 12 ~ 24V | RATED CURRENT | 22A | 19A | 15A | 13.34A | RATED POWER | 264W | 285W | 300W | 320.2W | RIPPLE & NOISE | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | VOLTAGE ADJ.

| 10.8~13.5V | 13.5~ 17V | 17 ~ 22V | 22 ~ 27V | CURRENT ADJ.

RANGE | Can be adjusted by internal potential meter .

or through output cable | 11 ~ 22A | 9.5 ~ 19A | 7.5 ~ 15A | 6.67~13.34A | VOLTAGE TOLERANCE | 2.5% | 2.0% | 1.0% | 1.0% | LINE REGULATION | 0.5% | 0.5% | 0.5% | 0.5% | LOAD REGULATION | 2.0% | 1.5% | 1.0% | 0.5% | SETUP RISE TIME | 2500ms, 80ms at full load 230VAC /115VAC | HOLD UP TIME | 15ms at full load 230VAC / 115VAC | INPUT | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC | FREQUENCY | 47 ~ 63Hz | POWER FACTOR | PF 0.95/230VAC PF 0.98/115VAC at full load and rated output voltage PF 0.9 at 50 ~ 100% load | EFFICIENCY | 92% | 92% | 93% | 94% | AC CURRENT | 4A / 115VAC 2A / 230VAC 1.8A / 277VAC | INRUSH CURRENT | COLD START 75A/230VAC | LEAKAGE CURRENT | <0.75mA / 277VAC m | OTHERS | MTBF | Khrs min.

MIL-HDBK-217F | DIMENSION | 252*90*42mm (L*W*H)(HLG-320H-Blank/A/ B) 256*90*42mm (L*W*H)(HLG-320H-C) | PACKING | Kg | - - - - - - - - MODEL | HLG-320H-30 | HLG-320H-36 | HLG-320H-42 | HLG-320H-48 | HLG-320H-54 | OUTPUT | DC VOLTAGE | 30V | 36V | 42V | 48V | 54V | C&C REGION | 15 ~ 30V | 18 ~ 36V | 21 ~ 42V | 24 ~ 48V | 27 ~ 54V | RATED CURRENT | 10.7A | 8.9A | 7.65A | 6.7A | 5.95A | RATED POWER | 321W | 320.4W | 321.3W | 321.6W | 321.3W | RIPPLE & NOISE | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | VOLTAGE ADJ.

| 27 ~ 33V | 33 ~ 40V | 38 ~ 46V | 43 ~ 53V | 49 ~ 58V | CURRENT ADJ.

RANGE | Can be adjusted by internal potential meter .

or through output cable | 5.35~10.7A | 4.45~8.9A | 3.8~7.65A | 3.35~6.7A | 2.97~5.95A | VOLTAGE TOLERANCE | 1.0% | 1.0% | 1.0% | 1.0% | 1.0% | LINE REGULATION | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% | LOAD REGULATION | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% | SETUP RISE TIME | 2500ms, 80ms at full load 230VAC /115VAC | HOLD UP TIME | 15ms at full load 230VAC / 115VAC | | | | - - - -
