Custom Desiccant Low Humidity Dehumidifier Rotor Industrial Energy Saving - China

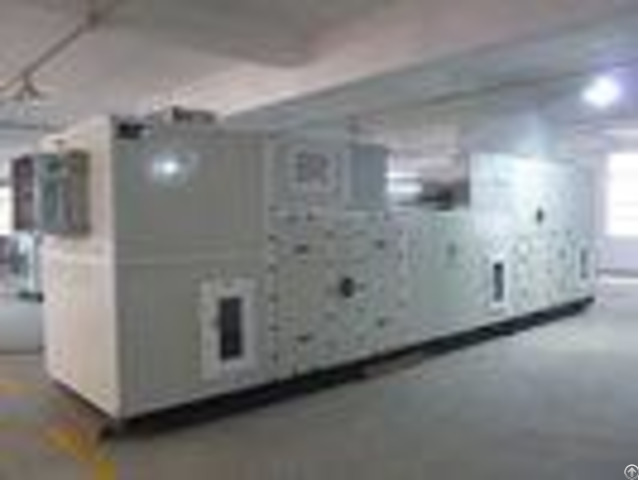

Custom Desiccant Low Humidity Dehumidifier Rotor Industrial Energy Saving Quick Detail: Style: Double Wheel Adsorption Desiccant Rotor: Sweden Proflute Desiccant Material: Silica Gel&Molecular Sieve Rated Air Flow: 8500m /h Supply Air Parameters: T=20 TL=-65 Dehumidifier Quality: High Installed Power: 94.05kw Voltage: 380V, 3 phase, 50Hz or customized Certification: ISO9001: 2008 Features: Economical, energy-saving Usage: super dry air supplying Description: ZCH-8500 Industrial Dehumidifieris forair deep drying, which is used for manufacturing spaces and processes that require extremely low humidity levels.

It can supply air with dew point less than -60 to glove box for the production of lithium batteries.

Operating Principles: Supply Air Stream Outside air is drawn into the unit using the supply fan.

The warm, moist outside air first passes through filters and then the cooling coil where it is cooled.

The air then goes through the first desiccant wheel where the air is dehumidified and the temperature is raised.

After the medium cooling, the air is further dehumidified by the second desiccant wheel.

At last the air is delivered directly to the space or into an existing air handler.

Exhaust Air Stream Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan.

The air filtered and then heated and humidified during the energy recovery process.

The air is then heated while passing through the regeneration coil.

The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.

Applications: # War Industry, Scientific Research, Electric Power Transportation # Lithium Battery Industry, Biotechnology Pharmaceutical Industry # Chemical, Daily Chemical Industry, Food Beverage Industry # Safety Glazing Material Industry, Tyre and Rubber Industry # Medical Instrument, Vegetables Frozen, Precise Instrument # Wood Goods, Shipbuilding Painting Industry, Kinds of Storage Specifications: - - - - Main Parameters | | Model | ZCH-8500 | Required Temperature& Humidity | T=232, TL45 | Total Process Airflow | 10625 m/h | Fresh Airflow | 2815 m/h | Recirculated Airflow | 7810 m/h | Supply Airflow | 8500 m/h | Parameters of Supply Air | T=22, TL63 | Regeneration Airflow | First Wheel | Second Wheel | 938 m/h | 2125 m/h | Regeneration Temperature | 125-130 | 135-145 | Regeneration Power | 24kw | 60kw | Regeneration Fan Power | 0.75kw | / | Process Blower Power | 1.5kw | 7.5kw | DrivieMotor Power | 0.1kw | 0.2kw | Cooling Load | 202.5kw | Installed Power | 94.05kw | - - - - Competitive Advantage: # Sweden Proflute silicon gel&Molecular Sieve wheel # A totally self contained unit # Siemens PLC + HMI automatic control system # Aluminum alloy frame, anti-cold bridge # Body modularization design, foam injected double wall casing # Stainless steel drain pan and bottom boards # Electric or steam heating or convert type can be available.

# All operation parameterscan be on-line observed, ensuring the operationreliability # High temperature safety thermostat cutout # Electrical interlocking of fan motors, heaters and rotor drive We can provide uniquedehumidification solution according to your requirements.
