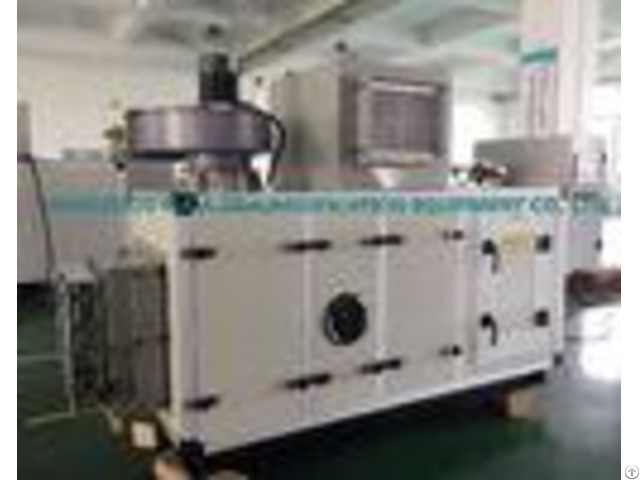

Desiccant Dehumidifier For Pharmaceutical Industry 23 8kg H - China

High EfficiencyDesiccant Dehumidifier for Pharmaceutical Industry 23.8kg/h Quick Details: Style: Wheel adsorption Desiccant Rotor: Sweden Proflute Desiccant Material: Silica Gel Rated Process Airflow: 3000m /h Rated Dehumidifying Capacity: 23.8kg/h Dehumidification Efficiency: High Installed Power: 28.2kw Voltage: 380V/3 phase/50Hz or customized Certification: ISO9001: 2008 Features: Economical, energy-saving Usage: Air humidity control Specifications: - - - - Main Parameters | | Model | ZCS-3000 | Process Airflow | 3000 m3/h | Regeneration Airflow | 100 m3/h | Rated Dehumidification Capacity | 23.8 kg/h | Regeneration Power | 24 kw | Power of Process Fan | 3.0 kw | Power of Regeneration Fan | 1.1 kw | Power of Driving Motor | 0.1 kw | Installed Power | 28.2 kw | Dimension | 25501001760 mm | Weight | 450kgs | - - - - Applications: # War Industry, Scientific Research, Electric Power Transportation # Lithium Battery Industry, Biotechnology Pharmaceutical Industry # Chemical, Daily Chemical Industry, Food Beverage Industry # Safety Glazing Material Industry, Tyre and Rubber Industry # Medical Instrument, Vegetables Frozen, Precise Instrument # Wood Goods, Shipbuilding Painting Industry, Kinds of Storage General Description: ZCS-3000 Stand Alone Dehumidifier removes moisture from air by using a desiccant-a material which easily attracts and holds water vapor.

Desiccant dehumidifiers are especially well-suited to removing moisture from air at low temperature and low humidity.

In Fuda units, the desiccant is impregnated into a corrugated ceramic composite material which is formed into a wheel.

Air passes easily through the flutes, contacting the desiccant.

The wheel rotates slowly (6 to 10 rph) between two air streams.

The incoming process air stream - the larger one - gives off its moisture to the desiccant.

The process air is dry as it leaves the wheel.

The humidity laden wheel rotates slowly into a second, smaller air stream which has been heated.

This smaller exhaust air stream called the reactivation air warms the desiccant.

The warmed desiccant gives off its moisture, which is then carried away by the reactivation air.

The newly dried desiccant material is rotated back into the process air, where it absorbs moisture once again.

Leading by high-tech, "Fuda" with over 30 years experience on dehumidifier manufacture, provides air dehumidifying equipment with excellent performance for all kinds of industries.

Competitive Advantage: # Fully automatic # Compact structure, # Stability and reliability, # Easy operation and maintenance
