Digital Electronic Lorry Weighbridge 20kg High Accuracy Anti Wear Capacity - China

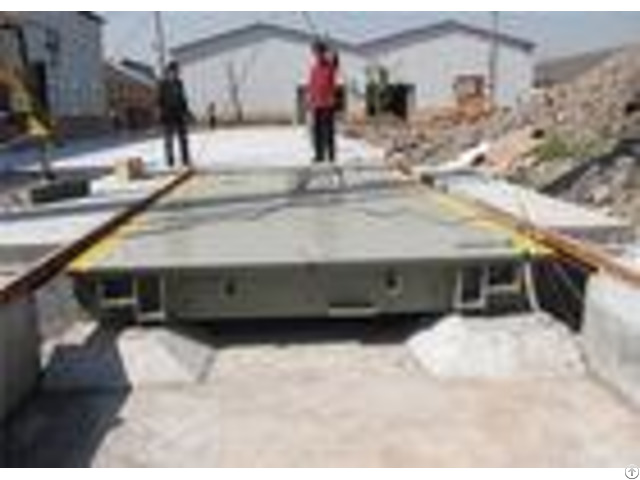

30 Ton Electronic Pit Type Lorry Weighbridge Digital Truck Scale Specification of 60 ton weighbridge 1 - Truck scale u-shaped steel beams, uneasy deformation, good craftwork 2 - Intelligent digital weighing instrument display, long-term working stability, 3 - Easy for installation and maintenance.

4 - Anti-jamming, anti-vibration, anti-corrosion, anti-wear capacity etc.

5 - With high-precision sensors, testing accuractly, low failure rate 6 - Use anti-surge junction box to protect weighing signal box, 7 - Show tare, gross/net weight, date, time by digit.

Auto tare, re-zero function.

8 - Print all kinds of weighing lists 9 - Dynamic check, digit filter and auto zero track 10 - Interface: RS232/standard communication interface 11 - Standard indicator: A9+ Technical Parameter: 1 - Power source: 220V AC(+10%, -15%)50Hz2% 2 - Work environment: -30C70C 3 - Work environment of sensors: -1C55C 4 - Work environment of digital terminal: 1C40C 5 - Relative humidity: 20%--90% RH 6 - Weight accuracy: Base on OIML R76 Features of digital truck scales 1 - Numeral transformation technology and compensation The Inner part of the weighing load cell contains module conversion device and CPU processing unit.

Auto-compensation with digital technology to the parameter of load cell such as non-linearity, temperature, etc.

Free of calibrating for the scale if the load cells are replaced.

2 - With the calibrating and digital technology, bias-load (four corners) calibration of the truck scale can be completed only once.

3 - Digital communications technology The central line structure can be used by several weighing load-cells (up to 32) in the same system.

RS485 interface is used and long-distance signal transmission is possible, with the transmission distance not less than 1000m.

Output signal at 3~4V strengthens the capability of anti-interference and lightening protection of the system.

4 - Intelligent technology The parameter of the load cell can be changed according to the orders.

Different wave-filtering ways can be adopted according to different situations.

5 - Module, standard and series scale body, multiunit assembly 6 - Digital load cell of full-sealing column and laser-welded stainless steel, with accuracy of C3, strong water-proof and anti-corrosive function - - - - Platform W x L (m) | Module Qty | Description | SCS-30 | SCS-50 | SCS-60 | SCS-80 | SCS-100 | SCS-120 | SCS-150 | SCS-200 | 3X7 | 3.4X7 | 1 | V | V | V | | | | | | 3X10 | 3.4X10 | 2 | V | V | V | | | | | | 3X12 | 3.4X12 | 2 | V | V | V | V | V | V | | | 3X15 | 3.4X15 | 3 | | V | V | V | V | V | | | 3X16 | 3.4X16 | 3 | | V | V | V | V | V | V | | 3X18 | 3.4X18 | 3 | | V | V | V | V | V | V | V | 3X20 | 3.4X20 | 4 | | | | V | V | V | V | V | 3X21 | 3.4X21 | 4 | | | | V | V | V | V | V | 3X22 | 3.4X22 | 4 | | | | V | V | V | V | V | 3X24 | 3.4X24 | 4 | | | | V | V | V | V | V | Max capacity(t) | 30 | 50 | 60 | 80 | 100 | 120 | 150 | 200 | Division(kg) | 10 | 20 | 20 | 20 | 50 | 50 | 50 | 50 | Load cell capacity(t) | 20 | 25 | 25 | 40/45 | 40/45 | 45/60 | 60 | 90 | Precision | OIML III | Working temperature | Indicator | -10~ +40 | Load cell | -30~ +65 | Humidity relative | 95% (without dew) | Working power | Voltage 220VAC(-15%~+10%)/501Hz | - - - -
