Energy Saving Automatic Defrost Dehumidifying Equipment With Capacity 10kg H - China

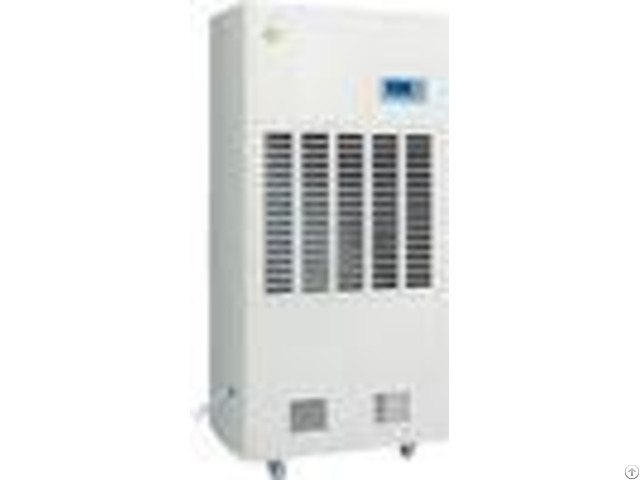

Energy Saving Industrial Refrigeration Dehumidifier 10kg/h Main Parameters(Test condition: T=27, RH=70%) - - - - Model | DJ-2881E | DJ-2481E | Nominal Dehumidifying Capacity | 8.8kg/h | 10kg/h | Power Supply | 380V-50Hz | Rated Input Current | 8A | 12A | Rated Input Power | 4.2KW | 5.2KW | Work Temperature | 5-38 | Circulating Airflow | 2600m3/h | 2800m3/h | Drainage Mode | Soft tube connection, drain continuously | Overall Dimension | 790*470*1620(mm) | Gross Weight | 180kg | 220kg | Net Weight | 150kg | 170kg | Applicable Scope | 220-300m2 | 300-400m2 | Compressor | Named compressor | Automatic Defrost | Start when environment temperature below 18 | Mobile Mode | Casters are fitted | Wind Direction | Front input top output | Design | LCD screen, humidity and time automatic control | Packaging | Wooden Case | - - - - Features # Adjustable control humidistat to maintain the level of dryness # A convenient drain point for condensate collection of hose attachment.

# Self-contained for quick and easy installation- No duct work required.

# Automatic defrost at ambient temperature below 18 C # Fitted with caster wheels, easy to move.

# Can be ducted if desired # Sturdy military-type carrying handles # Totally enclosed coils in an epoxy-coated.

# Simplicity of installation and operation.

# Optional inlet/ outlet duct flanges Specification Fuda dehumidifiers are effective solutions to environmental control problems.

The ranges of units are high capacity dehumidifiers, made to operate at high efficiencies by removing moisture from the air through the refrigeration process.

Than fan draws the moist air through the cold evaporator coil, which cools the air below its dew point.

Moisture forms on the evaporator coil and is collected in condensate tray before draining away through the condensate tube.

The cooled air then passes through the hot condenser coil where it is reheated using the same energy removed during the cooling phase, plus the additional heat generated by compressor.

The air is, therefore, discharged from the dehumidifiers at a slightly higher temperature with a lower absolute humidity than that which entered.

Continuous circulation of air through the dehumidifier gradually reduces the relative humidity within the area.

Application Fuda dehumidifiers clear the air in damp interior spaces.

Condensation is removed from windows, walls and ceilings.

Stuffy air is drawn off and dry air is pumped back in.

You simply set the dial and air humidity remains at the desired level.

The dehumidifiers are energy savers.

Process Flow
