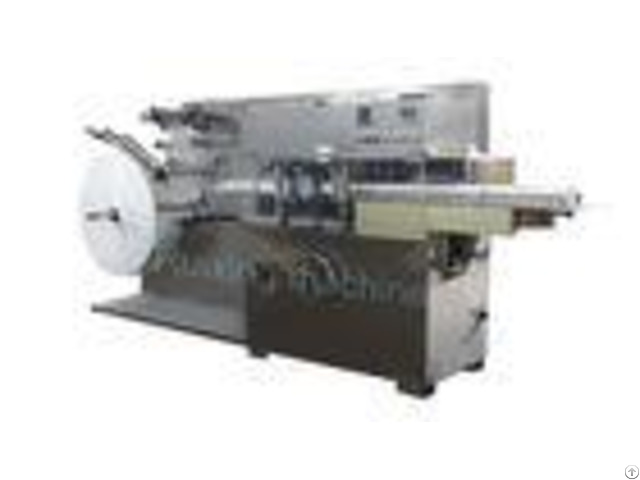

High Efficiency Automatic End Pieces Of Liquid And Napkin Folding Machine - China

High Efficiency Automatic End Pieces Of Liquid and Napkin Folding Machine Description: The equipment can be processed non-woven materials: nonwoven cloth, wet strength paper, acupuncture.

The liquid material system adopts 316 stainless steel production with 5-80 film packaging machine wipes our production line to do.

High degree of automation, simple operation, product neat, greatly improve the production efficiency, reduce the loss.

Automatic transmission, liquid, pressure, plug type folding, automatic counting, cutting ladder.

The device automatically complete the non-woven raw material and the liquid folding (one out of two), the conveyor belt dislocation cross delivery.

Specification: - - - - ModelNo.

| Qx-f(200) | FoldedSize | l: 60-110mmw: 35-80mm(Custo mizedDesign) | FoldingWay | Producibility: n-Fold, w-Fold, 1/4Fold, Etc | RawMaterial | Spun-LaceRollOrWetStrengt hRoll, Diameter1000mm, Width300mm | Motor | FrequencyControlOfMotorSp eed | Parameter-Setting | Man-MachineInterface | ProductionSpeed | 300-500pcs/Min | AirCompressor | ProvidedByYourself | PackingSize | ConfirmedBeforeShipment | PowerSupply | 380v50hz4kw | Weight | About1600kgConfirmedBefor eShipping | Customized | ContactLeonChu | - - - - Features: 1 Processing non-woven materials: A.

nonwoven B.

; wet strength paper; C.

needle cloth.

Packaging tool to finished B.

2 - Mechanical properties: A.

to adopt a consistent mode of operation, from the raw material conveying, and liquid, pressing, dial in folding, cutting, automatic counting and circular saws cutting folding finished cloth, neat incision, about equal to the length of the imported durable not easy fever, finished products sent a double parallel C.

the electronic counting device count, can be set for each bundle packing required number of sheets (5-50), cloth every beam between high-low ladder type convenient D.

mechanical low speed or high speed can be stepless variable speed, high stability, F.

cloth folding method adopt a folded plate and a knife folding machine, adjusted after transform folding, can produce M, Z, 1 / 4, folding and so on.

3 The tail bracket is installed with a wide belt conveyer and the control of the rising force.

4 - The production speed: 200 mm folding 300-500 / minutes (specific adjusted according to the material of cloth), according to spunlaced nonwoven roll tension, the machine can adjust the cloth the size of the tension of the two, in order to ensure the folding of the size precision of the finished product.

5 - Folding machine folding and material by Guobiao 304 standard, after quenching and tempering hardness of HB220-280 degree surface plating hard chromium tail loaded cloth with double stent solid, cloth feeding stability, bias is small, and the other by a new way of removing, and the disassembly is convenient and easy to use.

6 Bearing block material is made of high quality 45# steel and high quality bearings.

7 - The surface of the machine and the tank is made of stainless steel plate.

The folding machine folding, flat, smooth, standard size.

Bearing materials by domestic high-quality 45# steel surface plating chrome.

8 - The whole machine rack with GB molding steel, surface rust spray treatment, all machine bedplate must do antirust coating processing, frame welding is accurate in size, stent of appropriate reinforcement, belt wheel, bevel gear and all transmission part, center accuracy, the main gear points film, easy to adjust the gap.

To ensure the stable operation of the machine.

9Compact structure, stable operation, high speed and stable performance is the ideal equipment for making 5-30 film packaging wipes
