High Resolution P5 P6 P8 P10 Full Color Advertising Led Display Board Outdoor - China

P6 P8 P10 Full Color Large LED Screen Electronic for Video Advertising High Resolution Product Features: 1 - High resolution 10000 pixels/sqm, HD nice video advertising effect.

2 - DIP LED encapsulation confirm the high brightness even under strong sunlight 3 - Good protection level waterproof IP65, anti-corrosion, oxidation resistance, long life span 4 - Long viewing distance, High definition, Good uniformity 5 - Brightness can be adjusted automatically according to different surroundings 6 - Can be set to open and close the screen automatically 7 - Can be fixed on the wall, by pole support on the street, on top of building, or for stage rental hanging to meet the request of concert stage background, event show, live broadcasting, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, animation etc, connect with PC computer or network, also can remote control with asynchronous system, Wifi control, 3G control.

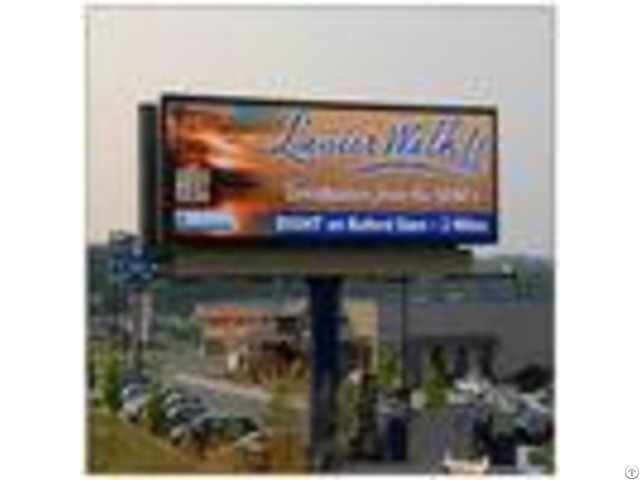

8 - Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.

Outdoor SMD / DIP Waterproof video advertising LED Display full color P6 P8 P10 Outdoor LED Screen Technical Parameters: - - - - Parameters | Value | Unit | Pixel pitch | 6 | mm | Brightness | 6500 | nit | Panel dimensions(WHD) | 57657670 | mm | Panel dimensions(WHD) | 22.6722.67x2.76 | Inch | Panel materail | Aluminum or Die-casting Aluminum | Weight | 9.8 | kg | Weight | 22.7 | lbs | Pixel configuration | 3-in-1 Face SMD | | Module dimensions (WH) | 192192 | mm | Module dimensions (WH) | 7.567.56 | Inch | Pixel matrix per panel | 3232 | pixels | Pixel density | 27777 | pixels/sq.m. | Refresh rate | 3000 | Hz | Gray scale per color | 65536 | level | Colors | 281 Trillion | Billion | Viewing angle(H/V) | 160/120 | deg.

| IP rating(Front/Rear) | IP67/IP65 | | Power consumption(max/avg) | 600/200 | W/sq.m. | Input voltage(AC) | 110~240 | V | Operating temperature | -40 ~60 | C | Operating humidity | 10%~90% | | Source compatibility(with video processor) | AV, S-Videom, VGI, DVI, HDMI, SDI, DP | - - - - P2.5 P3 P3.91P4 P4.81 P5 P6 P7.62 P8 P10 P16 DIP SMD indoor outdoor full color led display, rental led display 1 - LED display introduction: Outdoor full color display refers to the all-weather LED display applied in outdoor complex environment, connecting optics, microelectronics, information processing, mechanics and other technologies as a whole.

2 - Features: 10000 pixel dots per square meter resolution With super-high brightness LED, high contrast High frame frequency, wider view angel With module development and distributed scan technology, high reliability Universal AC input / full range IP65 protection level, outdoor solution PC synchronous or asynchronous control(optional) Use common video play software, easy to use 5 years warranty UL, CE, ROHS
