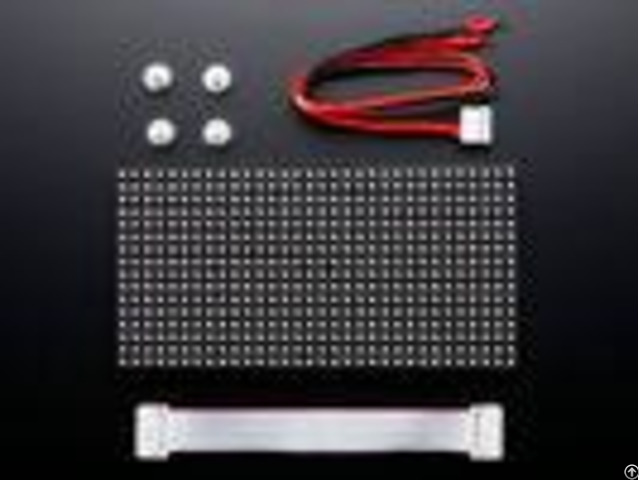

High Uniformity P8 P10 Outdoor Rgb Led Display Screen Dip 1 4 Scan Smd5050 3535 - China

Video Play P8 P10 Outdoor Full Color RGB LED Display Screen DIP 1 / 4 Scan SMD5050 3535 Function and Technology Character Introduction: P8/P10/P12/P16 outdoor LED screen adopts physical and virtual pixel technology which makes the picture more clear and vivid, no flicker and blind dots.

The screen is manufactured in a waterproof and dustproof design so it can work very well in rain and sunshine.

It can be assembled and disassembled very easy, and it is an ideal product for any kind advertisements.

It characterized by perfect vivid image, super brightness, high refresh rate, long life span and stable work, and waterproof, etc.

It is widely used in advertising, sports, industrial enterprise, transportation, stations, terminals, airports, construction, education system and other public places.

Main advantages: 1 - New mask design makes LED light almost zero reflection, which ensures the screen displaying effect; 2 - The cabinet of unit modules adopts to high-temperature spraying technology, the antirust function is greatly improved; 3 - Module surface flatness 0.2mm, the entire screen has good flatness; 4 - High uniformity display color; 5 - For improving the service life, PCB is made by wave soldering process with the green oxygen isolation layer, which prevents the line of moisture and oxidation.

6 - Service efficiency of the screen switch power supply is increased substantially, which reduces power failure rate; 7 - Using fishbone bus line greatly reduces the contact problem; 8 - IP65 grade for high performance waterproof and dustproof capability; 9 - -25C 65C working environment for outdoor display, adapted to the harsh environment.

SPECIFICATIONS Parameters: - - - - Display and Control Feature | Items | Parameter | Pixel Pitch | 8mm | Pixel composing | 1R1G1B(3IN1) | Wavelength (R) | 6255nm | Wavelength (G) | 5222.5nm | Wavelength (B) | 5672.5nm | Wave Angle (H) | 140(H)/140(V) | LED package | DIP | Density | 15625 | Display color | 256*256*256 | Whiteness brightness | 7000nit | Brightness level | 128 grade | Changing frame frequency | 60 Hz | Refresh | 1000 Hz | Driving method | Constant current 1/4 scan | Control mode | synchronous | Display port | DVI | MTBF | >5000 hours | Out of control | 1/10, 000 ( scattered) | lifetime | 100, 000 hours | Structure Feature | Items | Parameter | LED module size | 256mm*128mm | Display resolution/module | 128 dots*128dots | Standard cabinet size | 1024*1024mm | Weight per sqm | 30 Kg/sqm | Protection classification | IP65 | Install mode | Wall mounted, hung and stand structure | Cabinet Material | Aluminum/Iron | Working Power | Specification | Parameter | Working voltage | AC 220v/380v10% 47~64Hz | Max power/sqm | 950W/sqm | Average power/sqm | 400W/sqm | Short circuit protection | Yes | Working Environment | Specification | Parameter | Environment | Outdoor | Working temperature | --20~60C | Working Humidity | 10~90% | - - - - P10 outdoor High Density Advertising Full Color SMD3535 LED Video Display Q1: What's the pixel pitch for Outdoor LED Display Screen ? A1: Indoor&Outdoor (6mm / 8 mm/ 10mm/12mm/16mm ) Q2: Where is it used for? A2: Outdoor advertising, digital billboards, advertising in big companies Sports halls, fields, playgrounds.

Airports, bus stations and railway passenger terminals.

Facades of shopping malls, department stores, banks and car dealerships.

Architecture and social projects, information systems in cities.

Show-business, concerts, festivals, motor shows and other public events.

environment.

Q3: Can it play HD video? A3: Yes, it can realize HD video function with Novastar or Linsn controlling system.

Q4: What's the controlling system? A4: Our standard controlling system for this model is Novastar.

Also support other controlling system, like Linsn, etc.

Q5: How about the size of project? A5: Please offer the size with "width by height" of project.

We wil offer the suitable solution for your project size.

I will appreciate it if any drawing files about installation offered.
