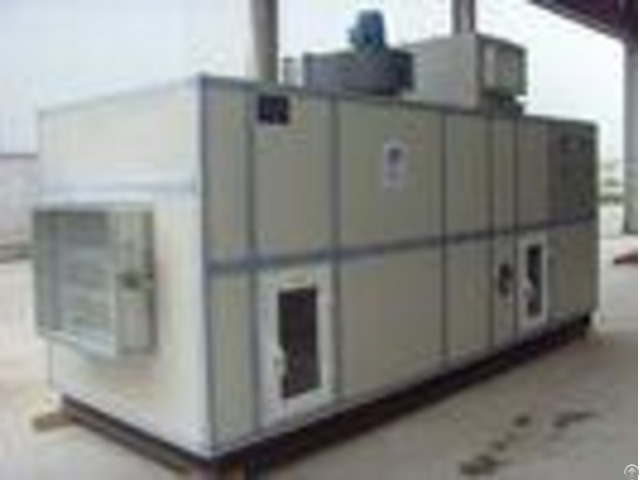

Low Temperature Industrial Desiccant Dehumidifier - China

Low Temperature Dehumidification, Industrial Desiccant Dehumidifiers 10000m/h Quick Detail: Style: Packing Unit with Dehumidifier

Desiccant Rotor: Sweden Proflute

Desiccant Material: Silica Gel Wheel

Rated Airflow: 10000m /h

Supply Air Parameters: T=34 RH=8%

Dehumidifier Quality: High

Installed Power: 82.7kw

Voltage: 380V, 3 phase, 50Hz or customized

Certification: ISO9001: 2008

Features: Economical, energy-saving

Usage: Air temperature and humidity control General Description: ZCB Series Industrial Desiccant Dehumidifierremoves humidity using both refrigeration and a desiccant rotor, so itcan both control the humidity and temperature of the air independently in onepackaged unit.

Operating Principles: Supply Air Stream

Outside air is drawn into the unit using the supply fan.

The warm, moist outside air first passes through filters and then the cooling coil where it is cooled.

The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised.

At last the air is delivered directly to the space or into an existing air handler.

Exhaust Air Stream

Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan.

The air filtered and then heated and humidified during the energy recovery process.

The air is then heated while passing through the regeneration coil.

The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.

Applications: # War Industry, Scientific Research, Electric Power Transportation

# Lithium Battery Industry, Biotechnology Pharmaceutical Industry

# Chemical, Daily Chemical Industry, Food Beverage Industry

# Safety Glazing Material Industry, Tyre and Rubber Industry

# Medical Instrument, Vegetables Frozen, Precise Instrument

# Wood Goods, Shipbuilding Painting Industry, Kinds of Storage Specifications: - - - -

Main Parameters | | Model | ZCB10000 | Total Process Airflow | 10000m3/h | Fresh Airflow | 5400 m3/h | Recirculated Airflow | 4600 m3/h | Rotor Regeneration Airflow | 3340m3/h | Parameters of Output Air | T36 RH8% | Regeneration Power | Electric Heating | 72kw | Steam Consumption | 145kg/h | The Power of Regeneration Fan | 3.0kw | The Power of Blower | 7.5kw | The Power of Driving Motor | 0.2kw | Installed Power | Electric Regeneration | 82.7kw | Steam Regeneration | 10.7kw | Cooling Load | 141kw | Chilled Water Consumption | 25T/h | - - - - Competitive Advantage: # Sweden Proflute silicon gel wheel

# A totally self contained unit

# PLC automatic control system, human-machine interface

# Aluminum alloy frame, anti-cold bridge

# Body modularization design, foam injected double wall casing

# Stainless steel drain pan and bottom boards

# Process and reactivation air flow sectors are insulated

# Electric or steam heating or convert type can be available

# All operation parameterscan be on-line observed, ensuring operationreliability

# High temperature safety thermostat cutout

# Electrical interlocking of fan motors, heaters and rotor driving Wecan provide the technical design and suitable dehumidifier according to your requirements and conditions.

Company Contact:

• Posted By: Hangzhou Fuda Dehumidification Equipment Co.lomited

• Phone: 86-571-86899396

• Address: 14th Floor, Building 1, Xiaocheng Tiandi, No. 450 Jinsha Avenue, HEDA, Hangzhou, China, Hangzhou , zhejiang , China

• Email:

• Website: https://www.industrialdesiccantdehumidifier.com

• Business Description: Hangzhou Fuda Dehumidification Equipment Co., Ltd. is a high-tech enterprise, which is the first established manufacturer in China specializing in R&D and manufacturing of desiccant rotor dehumidifiers and providing design and installation service for various HVAC projects.
