Multi Function Bluetooth And Wifi Controller - China

Product description： 3 IN 1 WiFi LED controller is a kind of multi-type led controller contain DIM/CCT/RGB 3 kinds of controller inside it.

It uses the latest intelligent wifi module and PWM control technology.

With this controller, user do not need a WIFI bridge or wifi box to connect wifi controller with light device, only download APP to control light device directly with mobile device.

Using amazon cloud, the servers are spreading all over the world, making the control effect more easy, convenient and stable.

The latest APP interface design makes the operation of color adjustment, brightness adjustment and saturation adjustment easier, faster and more humanized.

The main functions are color and saturation adjustment, brightness adjustment, custom mode, timer, group, scene, call reminder, microphone and so on.

This controller is with power off memory function, next time to used it, will start with the model it save.

Mainly used to control all kinds of constant voltage led products, such as LED source, flexible strip, wall washer, glass curtain wall light and so on.

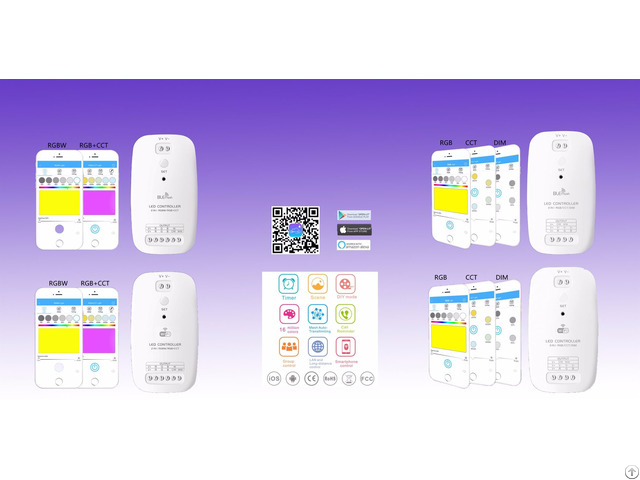

2 IN 1 WiFi LED controller is a multi-type led controller contain RGBW/RGB+CCT 2 kinds of controller inside it.

It uses the latest intelligent wifi module and PWM control technology.

With this controller, user do not need a WIFI bridge or wifi box to connect wifi controller with light device, only download APP to control light device directly with mobile device.

Using amazon cloud, the servers are spreading all over the world, making the control effect more easy, convenient and stable.

The latest APP interface design makes the operation of color adjustment, brightness adjustment and saturation adjustment easier, faster and more humanized.

The main functions are color and saturation adjustment, brightness adjustment, custom mode, timer, group, scene, call reminder, microphone and so on.

This controller is with power off memory function, next time to used it, will start with the model it save.

Mainly used to control all kinds of constant voltage led products, such as LED source, flexible strip, wall washer, glass curtain wall light and so on.

1 - It’s a multi-type controller contain: RGBW/ RGB+CCT 2 kinds of LED controllers’ function inside it;

2 - It works with RGBW/RGB+CCT 2 kinds of DC9~24V led lamps.

3 - Adopt DC9V-24V wide voltage, it support regular DC9V, 12V, DC24V LED lights;

4 - Main functions: DIY mode, Timer, Group, Scene, Phone calling reminder, microphone etc;

5.1600 millions colors, Special operation for color change and saturation change makes App interface stand out on the market ;

6 - Can set any timer to turn on lamp, turn off lamp, and set different lighting mode alarms;

7 - Works with Amazon Alexa, use AWS cloud to make online stability;

8 - Support LAN control and Long-distance control;

9 - OPEN-LIT APP support wifi and bluetooth mesh smart device.

Technical Parameters:

Model No: OP-WF-A2

Input voltage: DC9V~24V

Output voltage: DC9V~24V

Working temperature: -30~55℃

Static power consumption：<1W

Connection mode: Common anode

Dimension: L96XW53XH24mm

Packing size: L116XW68XH29mm Carton size: L325XW260XH365mm(100pcs)

Net weight: 45g Gross weight: 75g

Output current: 5Channel Max: 15A

Output power: Max: 9V: <135W, 12V: <180W, 24V: <360W

Output control: RGBW/ RGB+CCT LED lamps Certification: CE ROHS FCC ( WiFi module)
