P20 Full Colors Stadium Led Display Video Boards Large Curved Monitor Wide View - China

Product Description Product Name: PH16 Sports Stadium Perimeter Full Color LED Video Display Screen/outdoor Stadium LED Screen(LED factory) PCB Board (Driving Board) and LED Board (Lighting Board) are separe and connected into a module.

Both PCB board and LED board hve good quality conformal coating.

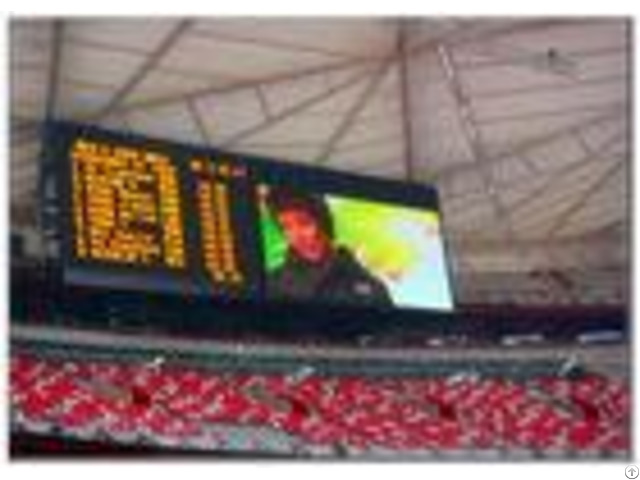

Applications: Advertising media, sports stadiums, public area, Football game, basketball game, swimming, pool golf game etc.

Products function introduction: 1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.

2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light 3) To pictures and character, have clear, exquisite and real display effect 4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion 5) Can repair each LED lamps, so the cost of maintain is lower, and easy to repair.

Products Advantages: 1) Price Advantage: We have the best competitive price at the market, also have the same even better quality.

2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each LED lamps 3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.

4) Service advantage: Better service at same situation, better cooperation at same service! Products application area: 1) Full color LED display: Equally or compactly make the red, green, blue color in one DOT, equally distribute at the panel, so make the whole display 2) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment Technological Parameters: - - - - Dimensions (W x H x D) | 1024x768x185mm | Module Quantity | 12pcs | Physical Resolution (W x H) | 96 x 72 ( dots) | Physical Pixels | 4096 | Weight ( Per Cabinet) | 41 kg | Material | Aluminium | Average Power Consumption (W/ sqm) | 250watts | Max Power Consumption ( W/ sqm) | 600watts | - - - - - - - - Parameter | Unit | Value | Brightness | nits | 6000 | Color temperature | deg.

k | 6500 | Viewing angle - Horizontal | deg.

| 120(plus 60/ minus60) | Viewing angle - Vertical | deg.

| 60(plus 30/ minus 30) | Cabinet Weight | kg | 41 | Cabinet Width | mm | 1024 | Cabinet height | mm | 768 | Cabinet depth | mm | 185 | Cabinet area | sq.

m.

| 0.79 | Cabinet material | | Aluminium | Aspect ratio | | 6 : 5 | Ingress Protection (Front/Rear) | IP | IP65/IP21 | Operating temperature range | deg.

C | -20 to 50 | Operating Humidity range | HR | 10% to 90% | Pixel type and configuration | R/G/B | 1, 1, 1 | Pixel pitch | mm | 10.667 | Pixel matrix per cabinet | | 96 x 72 | Pixels per cabinet | | 6912 | Lines per meter | | 94 | Pixels per sq.

meter | | 8789 | LEDs per sq.

meter | | 26367 | Recommended minimum viewing distance | m | 11 | Colours | | 1.07Billion | Gray scale | Levels | 1024 levels per colour | Brightness control | Levels | 100 | Digital processing | bit | 10 | Frame rate | Hertz | 60 | Display refresh rate | Hertz | 400 | Scan mode | | 1/4 duty scan drive | Input voltage | VAC | 110 to 240 | Input power frequency | Hertz | 50 or 60 | Input power (max/avg) | Watts per sq.

m | 600/250 | - - - -
