Pro Rf Remote Led Controller - China

1/4/8 zone version available

Achieve group control

RF 2.4G, 30m remote distance

Ultra sensitive touch color wheel

Smooth dimming and color adjustment

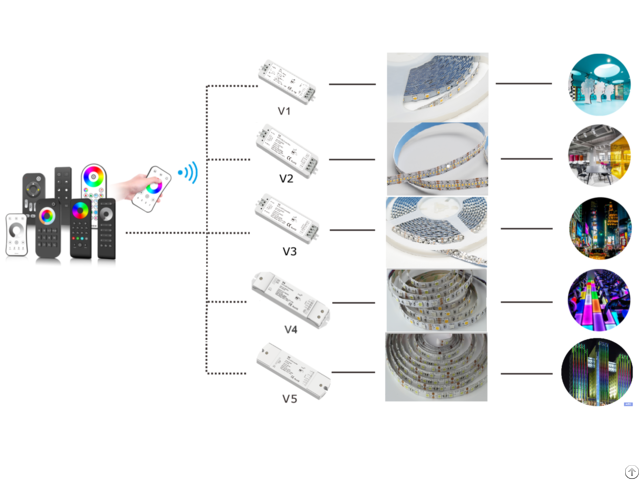

Fixed easily with strong magnet on the back option RF system is the smart home lighting solution and wireless LED controller system including the handheld RF remote, wall mounted PWM controller & RF remote, 1-5 channel PWM constant voltage or constant current receiver, RF dimmable LED driver and smart lamp to control single color, dual color, RGB, RGBW, RGB+CCT LED lighting to create static colors or dynamic color changing modes.

The RF system is a perfect wireless home automation system which enables to control multi zones by one remote with endless receivers in each zone and achieve perfect synchronization.

Each receiver can be controlled by 10 remotes.

The control range is up to 30m.

The receivers can be WiFi controlled via APP installed on IOS or Android device while working with a WiFi-Relay controller, achieve loop play, scene memory and timing run function, customize own RGB change mode list by APP for advanced function.

Constant Voltage Receivers

Model Light Type Input Voltage Output Current Output Power

V1 Dimming 5-36VDC 1CH, 8A 40-288W

V2 Dual Color 12-24VDC 2CH, 5A 120-240W

V2-L Dual Color 12-36VDC 2CH, 8A 192-576W

V3 RGB 12-24VDC 3CH, 4A/CH 3X(48-96)

V3-X RGB 5-24VDC 3CH, 10A/CH 3X(50-240)W

V3-L RGB 12-36VDC 3CH, 6A/CH 3X(72-216)W

V4 RGBW 12-36VDC 4CH, 3A/CH 4X(60-180)W

V4-L RGBW 12-24VDC 4CH, 5A/CH 4X(60-120)W

V5-M RGB+CCT 12-24VDC 5CH, 3A/CH 5X(36-72)W

V5 RGB+CCT 12-36VDC 5CH, 4A/CH 5X(48-144)W 2.4GHz wireless remote

Model Light Type Zone Working Volage Size ( mm )

RU8 Dimming 8 3VDC(CR2032) 135x40x11

RT1 Dimming 1 3VDC(AAAx2) 122x53x17.5

RS1 Dimming 4 3VDC(AAAx2) 155x43x17.5

R7 Dual Color 4 3VDC(CR2032) 107x58.5x9

RT2 Dual Color 1 3VDC(AAAx2) 122x53x17.5

RS4 RGB/RGBW 4 3VDC(AAAx2) 141x50x17.5

R15 RGB 1 3VDC(CR2032) 107x58.5x9

RT4 RGB/RGBW 1 3VDC(AAAx2) 122x53x17.5

RS3 RGB/RGBW 4 3VDC(AAAx2) 141x50x17.5

R23 RGB+CCT 1 3VDC(AAAx2) 135x55x16

Company Contact:

• Posted By: Bluesmartlife.co.,Ltd

• Phone: +86-13026642795

• Address: Langjing road, Dalang, Shenzhen , GuangDong , China

• Email:

• Business Description: Bluesmartlife is a high-tech enterprise dedicated to the development and production of LED controllers and LED strips.

  The core team of the company has more than 8 years of rich industry experience and strong R&D strength, before the company was founded, it operated in a studio mode, providing development and design services for small and medium-sized enterprises in Shenzhen, Dongguan, Zhuhai, Zhongshan and other cities, and provided strong technical support for the growth of many enterprises.

  Our products have been widely used industrial & commercial lighting and decoration, including indoor and outdoor billboards, building lighting projects, indoor decoration lighting and other occasions.

  Many of our products are also popular in home lighting.

  We adhere to the "quality first, integrity-based" business philosophy, guided by customer demand and innovation ideas, relying on excellent talent team, advanced production equipment and technology, to create value for customers.

  Currently, our major products are LED controllers and strips, including key-pressing LED controllers, RF remote LED controllers, bluetooth LED controllers, wifi LED controllers network LED controllers and LED amplifiers, we also offer all kinds of LED strips vary from single color to RGB+CCT with waterproof option.
