Refrigerator Temperature Alarm Monitor Data Logger With Gsm Easy Operation - China

2 Refrigerature Temperature Humidity GSM Data Logger With LED and Sound Alarm Function 1 - Introduction HUATO Digital GSM alarm temperature and humidity logger is widely used in the medical industry, electronic industry, food industry, the transport industry, the meteorological industry, textile industry, HVAC refrigeration, file management, agricultural research, biochemistry lab as well as hospitality industry and food and beverage business.

We believe HUATO instruments and meters can satisfy your various requirements perfectly.

2 - Working princeple 1) If user defined maxi/mini temperature values are exceeded, our device will send SMS to USERS Mobile phone.

We list the GSM alarm example picture as follows: 3 - Features Measure temperature and humidity with external sensor.

1) Capacity 43, 000-86, 000 data memory.

2) Large LCD display to show logging information easily.

3) GSM, sound light Alarm if user-defined maximum/minimum values are exceeded.

4) Analysis software used to view graph, specific data and analysis for logging data.

5) Log interval: 2s-24h .

6) Backlight display shows more clearly.

7) External power or battery supply.

Display show the battery indicator.

4 - Production data sheet - - - - | Model | S500-TH-GSM | S520-ET-GSM | S520-TH-GSM | S520-EX-GSM | S580-THGSM | S580-EX-GSM | Temperature accuracy | 0.5C | 0.3C | 0.3C | 0.3C | 0.2C | 0.2C | Humidity accuracy | 5% | | 3% | 3% | 2% | 2% | Recording volume | 43000 | 43000 | 43000 | Sensor type | Internal | External | Internal | External | Internal | External | Temperature measurement range | -20~70C | -40~85C | -20~70 | -40~85C | -20~70C | -40~85C | Humidity measurement range | 0~100%RH | - - - - 5 - Technical Parameters - - - - | Resolution | Temperature: 0.1C, humidity: 0.1%RH | Powe supply | 9V block battery | Display | Large lcd display | Dimension | 135* 124 *35mm (5.31 *4.88*1.37 inch) | Lcd size | 97*78mm (3.81*1.37 inch) | Weight | 330g | Accessories | Toanalyzer software CD, USB connection cable, calibration certificate, Warranty card and gifr box with carrying case.

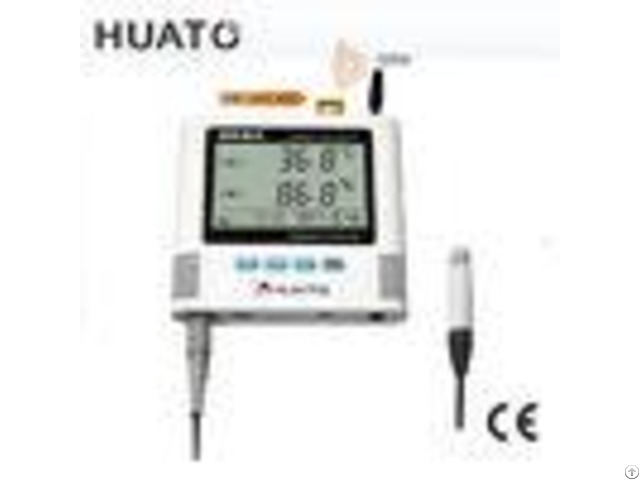

| Interface | USB(U) | - - - - 6 - Production picture
