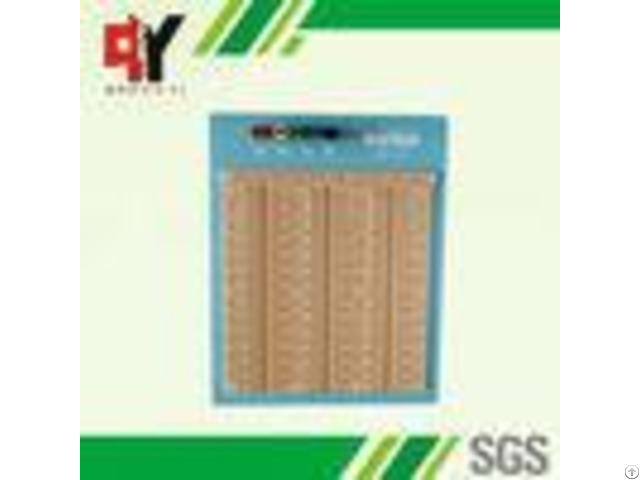

Reusable Big Brown Solderless Breadboard 2420 Points With Blue Plate - China

Reusable Big Brown Solderless Breadboard 2420 Points With Blue Plate Description: 3 Terminal Strips: 1920Tie-point 5 Distribution Strips: 500 Tie-point 4 Binding Posts Completely reusable Accepts a variety of wire sizes (29-20AWG) Material: ABS plastic All material Rohs compliance Low cost, high reliability Contact Resistance: 100mmax Insulator Resistance: 1000Mmin.

@DC 500V Dielectric withstanding Voltage: AC 500V For 1 minute Operating Temperature: -20C+80C Contact Material: Copper alloy nickel plate Contact way: Spring clip Connector Type: Socket Specifications: - - - - Item Number | SD-35 | 3 Terminal Strips | 1920 points | 5 Distribution Strips | 500 points | Binding Posts | 4 | Board Size | 18.2x16.6(cm) | Plate Size | 23x19(cm) | Package | Paper box | Color | Brown | - - - - Compared with other types, SD-35 is conspicuous for its bright color, blue and brown.

The blue plate is insulating board.

It is safe if you touch electronic in the process of experiment.

The connect way in the inside part of each single breadboard is like this: 5 holes are connected in the row, but the left 5 holes is not connected to the right 5 holes, if you need them connect, you can use wire or other components.

50 holes are connected in the bus line.

The hole is square.

Inside the holes, it is spring clip.

It is flexible.

It accepts the electronic components which the pin is between AWG 20 and AWG 29 - And the inside metal is with good quality.

It can bear being inserted many times.

Packaging & Shipping About package, first, the breadboard will adopt skin package.

Second, 50 pieces of SD-35will be packed into a carton box.

Of course, this is our ordinary package.

According to different shipping way, we will adopt the most suitable way.

Below is the detailed packing information: - - - -

Item No.

| G.W. (KG) | N.W. (KG) | Quantity (pcs) | Measuremnt (cm) | SD-35 | 25 | 24 | 50 | 472544 | - - - - Competitive Advantage: 1 - Convenient & Friendly Customer Service 2 - Low Prices Direct From Factory Suppliers 3 - Fast Delivery Around the World.

4 - High Quality With Global Standards.

5 - Safe Shipping Way and Payment Product Image:
