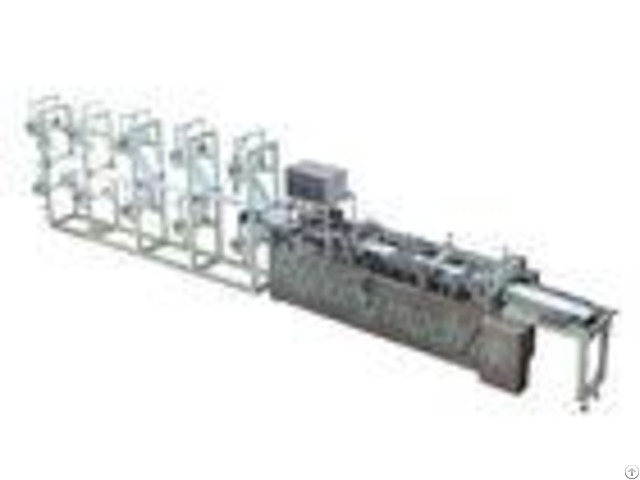

Roll Cutting Nonwoven Filter Bag Making Machine With Plc Control System - China

Roll Cutting Nonwoven Filter Bag Making Machine with PLC Control System Description: The equipment can produce punching bags, trimming neat.

Smooth without burrs.

Fastness.

Equipped with automatic identical material conveying system, with the innovative design of our factory, 1 sets of bags, which make the product forming stable, flexible and convenient.

Bag size can be customized according to customer requirements, can be controlled by a microcomputer position control system.

The company's production has to Shanghai, Jiangsu, Zhejiang and foreign manufacturers to develop different specifications, different production processes of non-woven fabric filter bag machine, more than 20 Taiwan, accumulated rich experience in production, the latest research and development of servo with communication of non-woven fabric air filter standby, has reached the highest level of technology.

Welcome field trips.

Specification: - - - - ModelNo.

| Qx-400 | FoldingDevice | StainlessSteelEdgeFolding Device | EmbossingDevice | EmbossingPatternCanBeCust omized | BondingSystem | HighQualityUltrasonicEqui pment | ProductSize | 500mmCanBeCustomized | ProductCategory | NormalType, MouthRollType, EdgeInsettingType | ControlSystem | PlcFrequencyControlOfMoto rSpeed | Motor | SteppingMotor | Parameter-Setting | MicrocomputerControlSyste m | ProductionSpeed | 10-50piece/Min | AirCompressor | ProvidedByYourself | PackingSize | DependingOnConfiguration | Power | 220v50hz5.5kw | Weight | About2500kgDependingOnThe Configuration | Customized | ContactLeonChu | - - - - Features: 1, Equipment can produce non-woven bags and roll the mouth edge of non-woven filter plug.

Production process: raw material - line into the rolling mouth - folding forming (folding) - cutting - finished products.

The cutting edge is smooth without burr.

Neat fastness.

2 - The equipment is equipped with continuously variable transmission device.

3, 5 sets of equipment with the end of the dual material feeding device, with a mechanical device and manual correction device, and quick on the material wrench.

4, Equipment with automatic identity material conveying system, and is equipped with in the folded edge of the molding system, with stainless steel in mold a set, specifications on demand.

Folding roller, 2 pairs, in order to insert the folded edge edge shape fully crushed.

5, Equipment distribution of large power ultrasonic system.

All the equipment used for conveying guide rollers are made by domestic high quality rigid oxidation to strengthen the aluminum roll transport.

The diameter of the equipment is 75mm, .

6, All the equipment used in the production of equipment, the use of imported special materials, indentation patterns are used in special process computer engraving processing (pattern can be customized according to the requirements).

Rolling line and line into the synchronization, no error.

7, The equipment mainly uses the import brand, with the microcomputer display control operation procedure, the photoelectric tracking the rolling mouth, the photoelectric tracking cutting.

Imported photoelectric eye tracking.

Equipment servo system, photoelectric probe tracking, ensure the rolling mouth, no cumulative error.

8, Equipment with no material down function device.

9, Ultrasonic mould and rolling and edge mould around mobile are produced by adjusting screw hand about the width, and handle rapid fixed position.

10, The whole machine frame is made of GB molding steel, surface rust spray treatment, all machine bedplate must do antirust coating processing, frame welding is accurate in size, the stent of appropriate reinforcement, belt wheel, bevel gear and all transmission part, the accuracy of center, the gear is mainly divided into pieces, easy to adjust the gap.

To ensure the stable operation of the machine.

11 - Standard fasteners used in all hexagonal screw and high-quality domestic 45# steel.

On the finished product is easy to cause the influence of parts are all made of stainless steel materials.

Machine all plating are divided into secondary electroplating, smoothness is good to ensure smoothness for all the parts of the machine, anti rust resistant degree.

Company Contact:

• Posted By: Jiaxing Ruixing Machinery Company limited

• Phone: 86-573-82693811

• Address: No 120, Fengyuan Road, District Two, Nanhu Industrial Park, Jiaxing , Zhejiang , China

• Email:

• Website: https://www.non-woven-machines.com

• Business Description: Jiaxing Ruixing Machinery Manufacturing Co., Ltd established in 1995, the specialist in inventing, designing, manufacturing and marketing of nonwoven fabric machinery and napkin machinery for over 15 years, has been taking the lead in China in the field of manufacturing stable quality machines.
