S500 Gsm Based Data Logger Sms Temperature Alarm With External Sensor - China

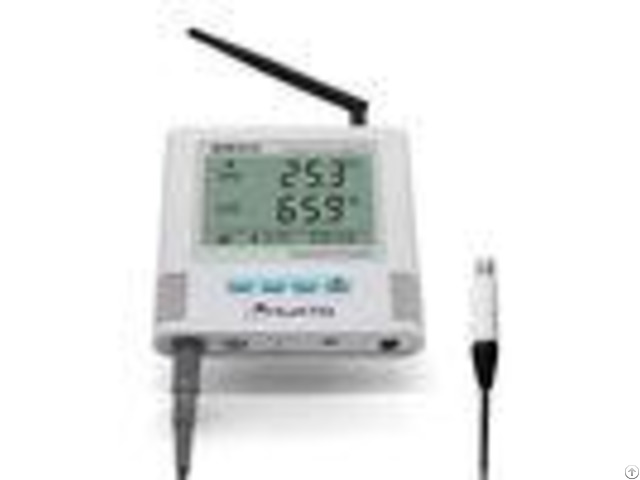

Tempearture Humidity GSM Data Logger 2g with External Sensor HUATO S500-EX-GSM Introduction

S500 GSM data logger was designed to monitor temperature & humidity with capability to send alarming message to phone numbers set up by customers when temperature data is out of pre-definded limits; and will send good news message when data is back within pre-defined limits.

In addition, customer can get real-time data message by calling phone number in the logger.

This series use original sensor import from America or Switzerland, has high accuracy and stable.

The user can also calibration the instrument by deviation.

Working princeple 1) If user defined maxi/mini temperature values are exceeded, our device will send SMS to USERS Mobile phone.

We list the GSM alarm example picture as follows: MobilePhone Tex example as follows: 2)When the Temperature returned to normal range, our device will sent the GSM to user again.

Example as follow: 3).

User can user can keep track of Real-time temperature When the user call to device and device will sent SMS to tell user what the temperature and humidity at anytime.

Features Measure temperature and humidity with external sensor.

1) Capacity 43, 000-86, 000 data memory.

2) Large LCD display to show logging information easily.

3) GSM, sound light Alarm if user-defined maximum/minimum values are exceeded.

4) Analysis software used to view graph, specific data and analysis for logging data.

5) Log interval: 2s-24h .

6) Backlight display shows more clearly.

7) External power or battery supply.

Display show the battery indicator.

Specifications

- - - -

Model | Accuracy | Measuring range | Sensor type | Capacity | S500-TH-GSM | 0.5C/5%RH | -20~70C 0~100%RH | Temperature + humidity, internal | 43000 | S500-EX-GSM | 0.5C/3%RH | -40~85C 0~100%RH | Temperature + humidity, external sensor with 3 meters | 43000 | S520-TH-GSM | 0.3C/3%RH | -20~70C 0~100%RH | Temperature + humidity, internal | 43000 | S520-EX-GSM | 0.3C/3%RH | -40~85C 0~100%RH | Temperature + humidity, external sensor with 3 meters | 43000 | S580-TH-GSM | 0.2C/2%RH | -20~70C 0~100%RH | Temperature + humidity, internal | 43000 | S580-EX-GSM | 0.2C/2%RH | -40~85C 0~100%RH | Temperature + humidity, external sensor with 3 meters | 43000 | S500-ET-GSM | 0.5C | -40~85C | Single Temperature external sensor with 3 meters | 43000 | S520-DT-GSM | 0.5C | -40~85C | Dual Temperature external sensor with 3 meters | 43000 | S520-ET-GSM | 0.3C | -40~85C | Single Temperature external sensor with 3 meters | 43000 | S520-DT-GSM | 0.3C | -40~85C | Dual Temperature external sensor with 3 meters | 43000 | - - - -

Analyzed Software interfaceApplicationsIt has been widely applied in agricultural research fields, electronics, food industry, medical industry, environmental protection and laboratory, etc.

Standard accessoriesBattery+Screw+ User manual+LogPro Software+USB cableOptional accessoriesAC-DC adapter+External alarm
