Silica Gel Desiccant Low Humidity Dehumidifier Industrial Electric - China

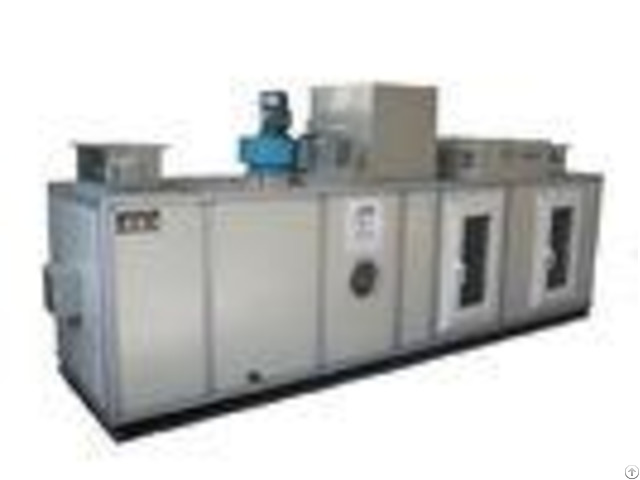

Silica Gel Desiccant Low Humidity Dehumidifier Industrial Electric Quick Detail: Style: Double Wheel Adsorption Desiccant Rotor: Sweden Proflute Desiccant Rotor Material: Silica Gel&Molecular Sieve Rated Air Flow: 300m /h Supply Air Parameters: T=20 TL=-55 Dehumidifier Quality: High Installed Power: 8.49kw Voltage: 380V, 3 phase, 50Hz or as customer required Certification: ISO9001: 2008 Features: Economical, energy-saving Usage: Air temperature and humidity control Description: ZCH-300 Industrial Dehumidifieris forair deep drying, which is used for manufacturing spaces and processes that require extremely low humidity levels.

It can supply air with dew point less than -60 to glove box for the production of lithium batteries.

Operating Principles: Supply Air Stream Outside air is drawn into the unit using the supply fan.

The warm, moist outside air first passes through filters and then the cooling coil where it is cooled.

The air then goes through the first desiccant wheel where the air is dehumidified and the temperature is raised.

After the medium cooling, the air is further dehumidified by the second desiccant wheel.

At last the air is delivered directly to the space or into an existing air handler.

Exhaust Air Stream Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan.

The air filtered and then heated and humidified during the energy recovery process.

The air is then heated while passing through the regeneration coil.

The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.

Applications: # War Industry, Scientific Research, Electric Power Transportation # Lithium Battery Industry, Biotechnology Pharmaceutical Industry # Chemical, Daily Chemical Industry, Food Beverage Industry # Safety Glazing Material Industry, Tyre and Rubber Industry # Medical Instrument, Vegetables Frozen, Precise Instrument # Wood Goods, Shipbuilding Painting Industry, Kinds of Storage Specifications: - - - - Main Parameters | | Model | ZCH-300 | Process Airflow | 300 m/h | Regeneration Airflow | 100m/h | Parameters of Output Air | T=20, TL60 | Regeneration Temperature | First Wheel | Second Wheel | 120 | 130 | Regeneration Power | 3.6kw | 4.5kw | Regeneration FanPower | 0.04kw | Process BlowerPower | 0.25kw | Driving MotorPower | 0.04kw+0.06kw | Installed Power | 8.49kw | Cooling Load | 14.66kw | - - - - Competitive Advantage: # Sweden Proflute desiccantwheel # A totally self contained unit # Siemens PLC + HMI automatic control system # Aluminum alloy frame, anti-cold bridge # Body modularization design, foam injected double wall casing # Stainless steel drain pan and bottom boards # Electric or steam heating or convert type can be available.

# All operation parameterscan be on-line observed, ensuring the operationreliability # High temperature safety thermostat cutout # Electrical interlocking of fan motors, heaters and rotor drive We can provide the technical design for dehumidificationaccording to your requirements.
