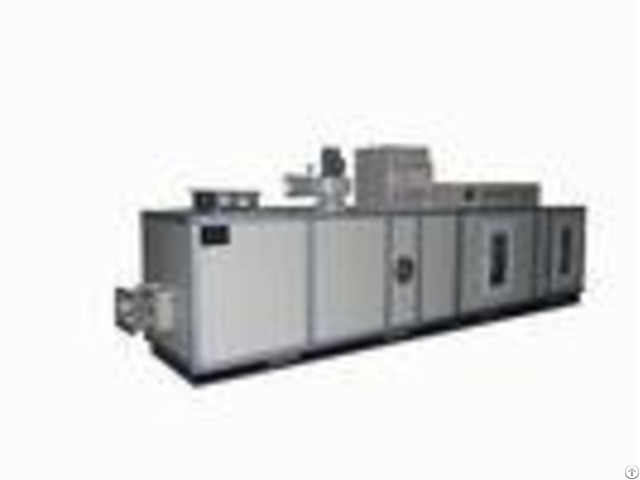

Small Industrial Desiccant Rotor Dehumidifier - China

Small Package Industrial Silica Gel Rotor Dehumidifier, Air humidity RH25% Quick Detail: Dehumidifying Mode: Cooling combined with Rotor Desiccant Rotor: Sweden Proflute Desiccant Material: Silica Gel Rotor Rated Air Flow: 2600m /h Supply Air Parameters: T=20 RH=20% Dehumidifier Quality: High Installed Power: 21.81kw Voltage: 380V, 3 phase, 50Hz or customized Certification: ISO9001: 2008 Features: Economical, energy-saving Usage: Air temperature and humidity control General Description: ZCB Series Desiccant Rotor Dehumidifiers remove humidity using both refrigeration and a desiccant rotor, so itcan both control the humidity and temperature of the air independently in onepackaged unit.

Operating Principles: Supply Air Stream Outside air is drawn into the unit using the supply fan.

The warm, moist outside air first passes through filters and then the cooling coil where it is cooled.

The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised.

At last the air is delivered directly to the space or into an existing air handler.

Exhaust Air Stream Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan.

The air filtered and then heated and humidified during the energy recovery process.

The air is then heated while passing through the regeneration coil.

The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.

Applications: # War Industry, Scientific Research, Electric Power Transportation # Lithium Battery Industry, Biotechnology Pharmaceutical Industry # Chemical, Daily Chemical Industry, Food Beverage Industry # Safety Glazing Material Industry, Tyre and Rubber Industry # Medical Instrument, Vegetables Frozen, Precise Instrument # Wood Goods, Shipbuilding Painting Industry, Kinds of Storage Specifications: - - - - Main Parameters | | Model | ZCB2600 | Total Process Airflow | 2600m3/h | Fresh Airflow | 258 m3/h | Recirculated Airflow | 2342 m3/h | Rotor Regeneration Airflow | 860m3/h | Parameters of Output Air | T=202 RH=235% | Regeneration Power | 18kw | Power of Regeneration Fan | 0.75kw | Power of Blower | 3kw | Power of Driving Motor | 0.06kw | Installed Power | 21.81kw | Cooling Load | 39.2kw | Power Supply | 3P/380V/50HZ | - - - - Competitive Advantage: # Sweden Proflute silicon gel wheel # A totally self contained unit # PLC automatic control system, human-machine interface # Aluminum alloy frame, anti-cold bridge # Body modularization design, foam injected double wall casing # Stainless steel drain pan and bottom boards # Process and reactivation air flow sectors are insulated # Electric or steam heating or convert type can be available # All operation parameterscan be on-line observed, ensuring operationreliability # High temperature safety thermostat cutout # Electrical interlocking of fan motors, heaters and rotor driving Wecan provide technical design and suitable dehumidifieraccording to your requirements.
