U Beam Girders Pit Type Weighbridge System Printer Load Cells Auto Tare Clearing - China

3.4*16m80 Ton Pit Type Weighbridge Systems Printer Load Cells The scale is equipped with the stable and reliable high precise weighing load cell, the intellectualized weighing indicator equipped with high accuracy, high resolution.

Plenty of weighing software and good working reliability weighing data can be printed out via standard output interface of indicator and also with a PC connected to an indicator.

Firstly: the body is strictly processed with antirust and oxide-layer dislodging Secondly: surface is sprayed twice with the quality epoxy and rich-zinc antirust paint Thirdly: antirust-paint layer is sprayed with orange-veins acrylic acid polyurethane that is usually used in shipbuilding industry Features : 1 - Digital display of gross weight, net weight and tare weight 2 - Auto zero tracking, auto peeling and auto tare clearing 3 - Storage of vehicle No., tare weight, article No., itemize accumulation, total accumulation 4 - Data transmission, querying and printing 5 - Chinese, English and Numeric input 6 - Stainless steel load cell as standard which performs well in anti rust and waterproof 7 - Interconnected through PC and printer 8 - U-type beam and the panel are continuously welded into shape to isolate the inner air from outer air, eliminate internal corrosion, improve antirust performance and increase the service life - - - - Platform W x L (m) | Module Qty | Description | SCS-30 | SCS-50 | SCS-60 | SCS-80 | SCS-100 | SCS-120 | SCS-150 | SCS-200 | 3X7 | 3.4X7 | 1 | V | V | V | | | | | | 3X10 | 3.4X10 | 2 | V | V | V | | | | | | 3X12 | 3.4X12 | 2 | V | V | V | V | V | V | | | 3X15 | 3.4X15 | 3 | | V | V | V | V | V | | | 3X16 | 3.4X16 | 3 | | V | V | V | V | V | V | | 3X18 | 3.4X18 | 3 | | V | V | V | V | V | V | V | 3X20 | 3.4X20 | 4 | | | | V | V | V | V | V | 3X21 | 3.4X21 | 4 | | | | V | V | V | V | V | 3X22 | 3.4X22 | 4 | | | | V | V | V | V | V | 3X24 | 3.4X24 | 4 | | | | V | V | V | V | V | Max capacity(t) | 30 | 50 | 60 | 80 | 100 | 120 | 150 | 200 | Division(kg) | 10 | 20 | 20 | 20 | 50 | 50 | 50 | 50 | Load cell capacity(t) | 20 | 25 | 25 | 40/45 | 40/45 | 45/60 | 60 | 90 | Precision | OIML III | Working temperature | Indicator | -10~ +40 | Load cell | -30~ +65 | Humidity relative | 95% (without dew) | Working power | Voltage 220VAC(-15%~+10%)/501Hz | - - - -

Company Contact:

• Posted By: Hebei Pinglei Weighing Apparatus Co., Ltd

• Phone: 86-137-39722345

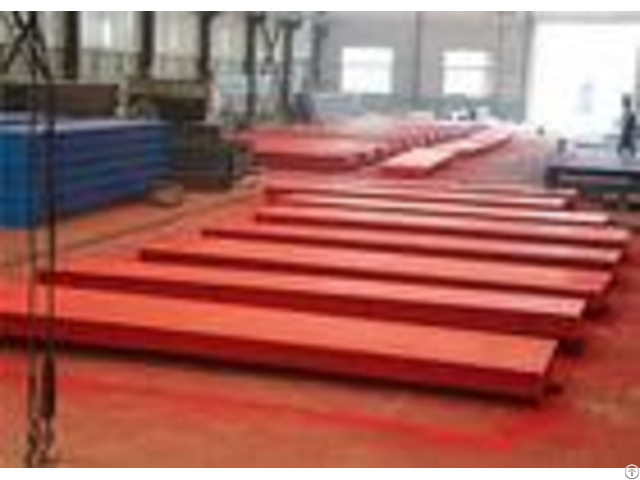

• Address: 500 Meters By The Intersection Of Hengjing Road and Fangxi Road, Luancheng District, Shiajizhuang, Shiajizhuang , Hebei , China
