U Shape Electronic Lorry Weighbridge 80 Ton Capacity Sensor Load Cells - China

80 Ton U Shape Electronic Lorry Weighbridge Truck Scale Sensor Load Cells Features of digital truck scales: 1 - Numeral transformation technology and compensation The Inner part of the weighing load cell contains module conversion device and CPU processing unit.

Auto-compensation with digital technology to the parameter of load cell such as non-linearity, temperature, etc.

Free of calibrating for the scale if the load cells are replaced.

2 - With the calibrating and digital technology, bias-load (four corners) calibration of the truck scale can be completed only once.

3 - Digital communications technology The central line structure can be used by several weighing load-cells (up to 32) in the same system.

RS485 interface is used and long-distance signal transmission is possible, with the transmission distance not less than 1000m.

Output signal at 3~4V strengthens the capability of anti-interference and lightening protection of the system.

4 - Intelligent technology The parameter of the load cell can be changed according to the orders.

Different wave-filtering ways can be adopted according to different situations.

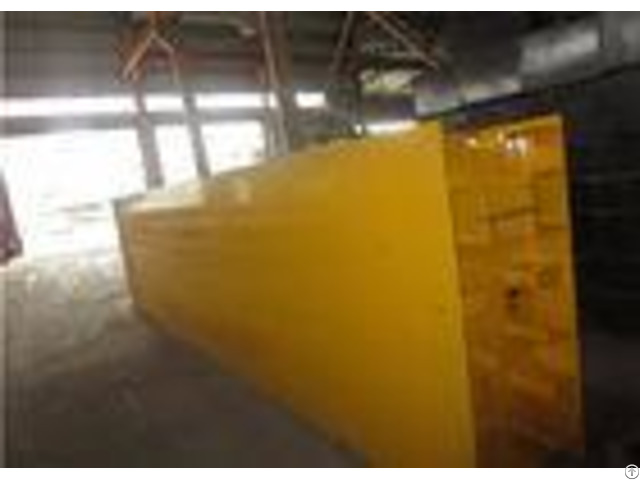

5 - Module, standard and series scale body, multiunit assembly 6 - Digital load cell of full-sealing column and laser-welded stainless steel, with accuracy of C3, strong water-proof and anti-corrosive function 1 - Zemic load cell or Keli load cell; Optional 2 - Waterproof junction boxes-1 set 3 - Panasonic printer 1piece 4 - Main cable: 50m 5 - 12mm thick steel surface avoid truck scale bending; 6mm thick strong U shaped structure 6 - Design 6 pieces U beam design 7 - U beam thickness design with 6mm 8 - Pre camber machine to making platform have a high curves in Middle of platform 9 - Auto welding machine to ensure welding is smooth and good strength 10 - Shot blasting clean all dirty before painting - - - - Weighing Platform | Per customer requirement | Load Cell | From 4 pcs to 12 pcs | Weighing Apparatus | XK3190-D2+ (1 PC) | Printer | PX1121(1 PC) | Large Screen Display | YHL-3 inches(1 PC) | Truck Scale Width | 3m/3.2m/3.4m/3.5m/4m | Truck Scale Length | 7m/8m/9m/10m/12m/15m/16m/ 18m/20m/21m/22m/24m | Capacity | 10ton/20ton/30ton/40ton/5 0ton/60ton/80ton/100ton/1 20ton/150ton/200ton | Accuracy Class | OIML(III) | Package | The body of truck scale is nude packed and the accessories parts are packed in carton.

Install in 20fcl GP or 40fcl GP.

We can design and manufacture by customers requirement.

| - - - - - - - - Max.

capacity(t) | 20 | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | 180 | Standard divistio n(kg) | 5 | 10 | 10 | 20 | 20 | 20 | 20, 50 | 20, 50 | 20, 50 | 20, 50 | Accurate divistion(kg) | 2 | 5 | 5 | 5 | 5 | 10 | 10 | 10 | 10 | 10 | Load cell capacity(t/pc) | 8 | 20 | 30 | 30 | 30 | 30 | 30 | 40 | 40 | 40 | Platform size: WxL(m) | Optimization Size | 3x6 (1 section) | | | | | | | | | | | 3x7 (1 section) | | | | | | | | | | | 3x8 (2 sections) | | | | | | | | | | | 3x9 (2 sections) | | | | | | | | | | | 3x10 (2 sections) | | | | | | | | | | | 3x12 (2-3 sections) | | | | | | | | | | | 3x14 (3 sections) | | | | | | | | | | | 3x16 3.4x16 (3 sections) | | | | | | | | | | | 3x18 3.4x18 (3-4 sections) | | | | | | | | | | | 3x21 3.4x24 (4 sections) | | | | | | | | | | | - - - -
