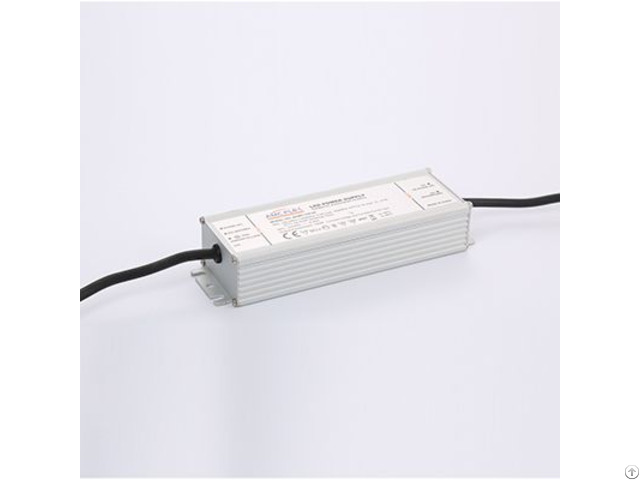

150w 24v 6250ma Voltage Outdoor Led Power Supply - China
price: 25.00 Dollar US$
Model: APMS-150-24
Technical Specs:
Output Parameters
Rated Output voltage: 24VDC
Rated Output Current: 6.25A
Rated Output Power: 150W Max
Efficiency>92%
Line Regulation: ±0.5%
Load Regulation: ±1.5%
Voltage tolerance: ±3% 2 - Input Parameters
Rated Input voltage: 200-277VAC
Input voltage range: 176-305VAC, 47-63hz
Input Current Max: 1.0A
Inrush Current<70A
Power Factor>0.95
THD<15% 3 - Protection
Overload
Short Circuit
Over voltage
Over Temperature 4 - Environment
Operating Temperature range: -40 to +80℃
Storage Temperature range: -45 to +80 ℃
Humidity: 10～95%
Waterproof Level: IP67 5 - Safety Standards
UL8750, IEC/EN61347-1, EN61347-2-13, EN62368, GB19510.1, GB19510.14, IP67 Approved
Withstand voltage: I/P-O/P: 3KV EMI, EMS
EN55015(CISPR15), GB17743, EN61000-3-2, Class C, EN61000-4-2, 8KV air ; Level 2, 4KV contact, EN61000-4-3, EN61000-4-4, EN61000-4-5, 4KV/Line-Line 6KV/Line-Earth, EN61000-4-6 6 - Others
MTBF>200Khours
Dimension: 180(L)*63 (W)*40(H)mm
Packing: 0.8KG/PC, 350x310x260mm, 16pcs / 14.3 Kg /0.02CBM/CTN
Company Contact:
- Posted By: CHANGZHOU AMC FLEX TECHNOLOGY CO LTD
- Phone: 008618625298070
- Address: no8,huashan road, xinbei area, changzhou , jiangsu , China
- Email:
- Website: https://www.amcflex.com/
Published date: January 12, 2021
- Business Description: Research and development is our strong strength we can realize your ideas to real products.
Covered with modern production facilities, professional labors, strictly QA/QC inspectors, we are striving to provide the best quality and most durability products.
All of our products Meet IEC60950,UL60950,EN55015, EN61347,EN6100-3-2 quality standards.
Exported to over 15 countries with great reputations.
