240w 24v 10a Constant Voltage Led Power Supply - China

price: 30.00 Dollar US$

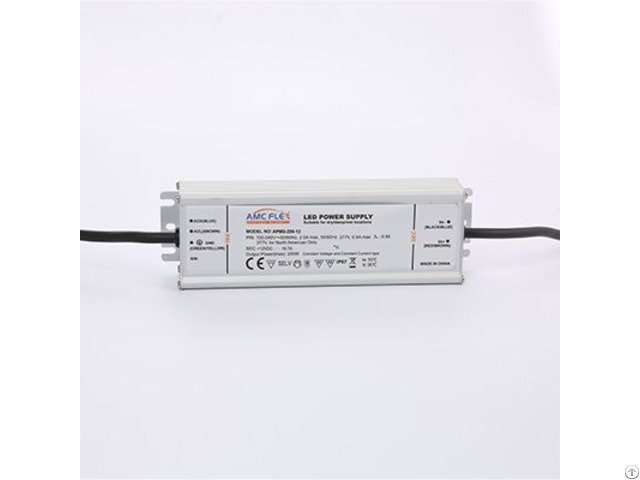

240w 24v 10a Constant Voltage Led Power Supply

Products Photos Catalog 240w 24v 10a Constant Photos Catalog

1.176-305VAC wide input voltage range 2 - Constant Voltage Drive Mode 3 - Built in active PF function, PF>0, 95 4 - High working efficiency up to 90% 5 - THD<15%, Flicker-Free Design 6 - IP67 waterproof level with fine aluminum housing, suitable for outdoor applications 7 - Flicker-Free, Low ripple 8.4KV + 6KV Surge protection, more safety 9 - Constant voltage + Constant Current Drive Mode 10 - 100% Constant Power 11 - 5 years warranty

Model: APMS-240-24

Technical Specs:

Output Parameters

Rated Output voltage: 24VDC

Rated Output Current: 10A

Rated Output Power: 240W Max

Efficiency>92%

Line Regulation: ±0.5%

Load Regulation: ±1.5%

Voltage tolerance: ±3% 2 - Input Parameters

Rated Input voltage: 200-277VAC

Input voltage range: 176-305VAC, 47-63hz

Input Current Max: 1.8A

Inrush Current<70A

Power Factor>0.95

THD<15% 3 - Protection

Overload

Short Circuit

Over voltage

Over Temperature 6 - Others

MTBF>200Khours

Dimension: 219(L)*63 (W)*40(H)mm

Packing: 1.2KG/PC, 350x310x260mm, 12pcs /15.9Kg / 0.02CBM/CTN


Company Contact:


  • Phone: 008618625298070

  • Address: no8,huashan road, xinbei area, changzhou , jiangsu , China

  • Email: Email


Published date: January 12, 2021

  • Business Description: Research and development is our strong strength we can realize your ideas to real products.

    Covered with modern production facilities, professional labors, strictly QA/QC inspectors, we are striving to provide the best quality and most durability products.

    All of our products Meet IEC60950,UL60950,EN55015, EN61347,EN6100-3-2 quality standards.

    Exported to over 15 countries with great reputations.
