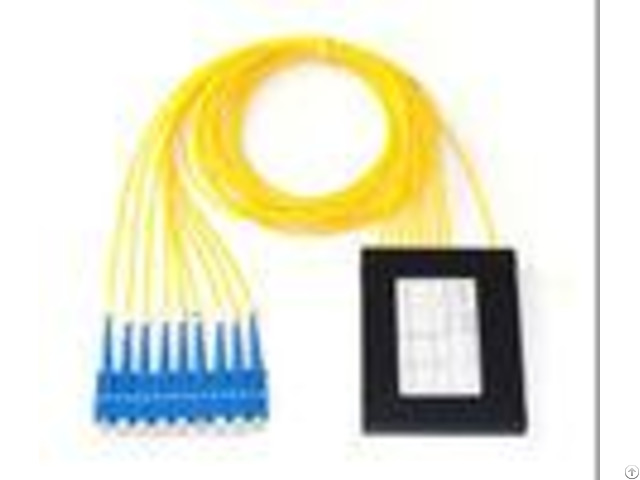

Abs Box G657a1 Fiber Optic Splitter High Channel Counts For Lan Fttx Systems - China

Description Planar lightwave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology.

It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON(EPON/GPON) networks to realize optical signal power splitting.

We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.

All PLC Splitter products meet GR-1209-CORE and GR-1221-CORE requirements.

Features 1Low insertion loss and low PDL 2High channel counts 3Exceptional reliability and stability 4Wide operating wavelength Applications 1FTTX Systems 2LAN, WAN and metro networks 3Analog/Digital passive optical networks 4CATV networks 5Other applications in fiber optic systems Specifiation - - - - Parameters | 12 | 14 | 18 | 116 | 132 | 164 | Operating Wavelength (nm) | 12601650 | Fiber Type | G657A1 or customer specified | Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | Temperature Stability (-4085 )(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | Operating Temperature | -4085() | Storage Temperature | -4085() | Device Dimension (mm) | 4044 | 5044 | 5074 | 60124 | Module Dimension (mm) | 1008010 | 1208018 | 14011518 | 14011518 | Mini-Module Dimension (mm) | 6074 | 60124 | 80206 | 100406 | - - - - 1 - Specified without connectors.

2 - Add an additional 0.15dB loss per connector.
