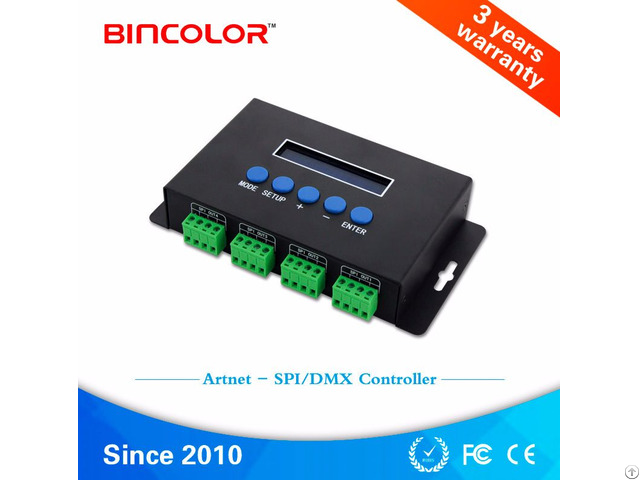

Bincolor Led Ethernet Spi Dmx Pixel Light Controller Bc 204 - China

This Ethernet-SPI/DMX pixel light controller is dedicated to converting the Ethernet signal into SPI pixel signal, which is designed for large project with high-density pixel light, such as matrix panel lights, construction's contour lamp, etc.

Besides converting Ethernet-based control protocols into various LED driving IC signal, it also outputs DMX512 signal at the same time, convenient for the connection of different types of led lamp, and to achieve the unified control of all kinds of led lamp in the same project.

Basic Features：

1 - With LCD display and built-in WEB SERVER setting interface, easy operation.

2 - Support Ethernet DMX protocol ArtNet, can be expanded to other protocols.

3 - Multi SPI (TTL) signal output, up to 5440 pixels control.

4 - Output DMX512 signal at the same time, convenient for the connection of different types led lamp.

5 - Support various LED driving IC, flexible control.

6 - Support online firmware upgrade.

7 - Adopt DIP plug-in design for the easily-worn parts, Users can repair the damage caused by wrong wiring or short circuit.

8 - Built-in test mode, using a network interface with indicator light, work status is clear when at a glance.

Specifications：

Model BC-204

Working Voltage DC5-DC24V Output Current 7A X 4CH(Built-in 7.5A fuse)

Input Ethernet control protocol ArtNet

Output Control IC 2811/2801/6803/3001/8806/ 9813/APA102/TM1814/SK6812 Series

Control Pixels RGB：680 Pixels X4CH RGBW：512 Pixels X4CH Output DMX512 One port(1X512 Channels) Working Temp -20~55℃

Product Dimension L166×W110×H31(mm) Weight(G.

W) 510g
