Cheap Price 300w Modular Design Streetlight - China

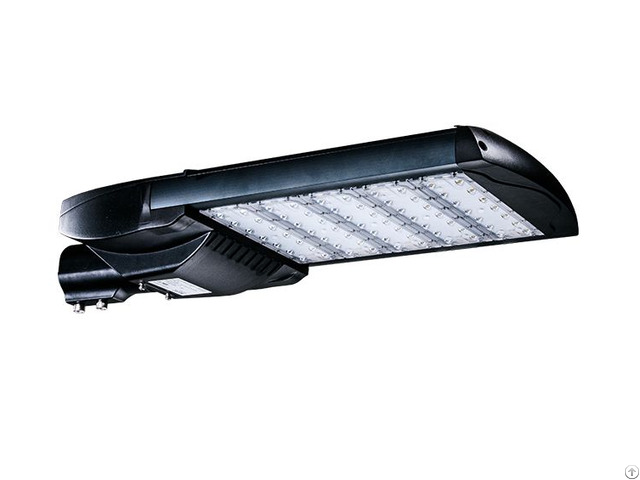

Series H6 LED Street Light

Model

ZGSM-LD300H6

Application

Outdoor Solar LED Garden Light | Highway | Parking lot | Bridge | Path

KEY FEATURES

1 - Wide power range: 35W~320W.

2 - Special circuit design, single LEDs damage won't affect others' normal work.

3 - Modular design and tool-less open for easy replacement and maintenance.

4 - Power-off protection makes the power automatically off when fixture is opened (optional).

5 - Level bubble makes it easy for the installer to adjust the position of the lamp.

6 - Breather ensures air balance inside and outside of driver box of the lamp.

7 - High Lumen output up to 165lm/ w with high quality LED chips.

8 - 1000 hours salt spray test report.

9 - Vertical and horizontal installation both available, adjustable by 15in both directions.

10 - Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11 - Designed to last at least 100, 000 hours at L70.

12 - Multiple lighting distributions are available.

13 - CE, ROHS, GS, CB, LM80, FCC, IP66, IK10

14.7 years warranty SPECIFICATIONS

Specifications

Model ZGSM-LD300H6

LEDBrand Lumileds3030/5050

DriverBrand MeanwellorInventronics


NorminalWattage 300W

LEDModuleQuantity 5modules

InputVoltage 100-240/277VAC

PowerEfficiency >90%

PowerFactor >0.95

LampRatedLuminousEffic iency 125-155lm/w

LampRatedLumenoutput 37500-46500lm(Lumentolera nce+/-5%)

ColorRenderingIndex 70(80optional

ColorTemperature 3000Kor4000Kor5000Kor5700 K

PhotometricType TypeIMedium;TypeIIMedium; TypeIIIMedium, TypeV, Short

OptimalOperatingTemper ature 25

StorageTemperatures -40C~50C

WorkingEnvironment Between-40C~+50C, 10%~90%RH

TotalHarmonicDistortio n <10%

LumenMaintenance >100000hours-L70, @25C(77F)

WindIndex Force12

Body Die-castaluminumHousing

Cover PClens

PoleFitterDiameter 60mm(50mmoptional)

Rating IP66IK10

Protection ClassI(ClassIIoptional)

SPD 10KV(20KVoptional)

Certification CE, ROHS, LM80, LM79, FCC, IP66, IK10

DimmingOptions 1-10VorDALIorPWMorTimer

ControlOptions PhotocellorMotionsensoror Smartcontrol

ColorOptions SilverorBlack

Warranty 7years
