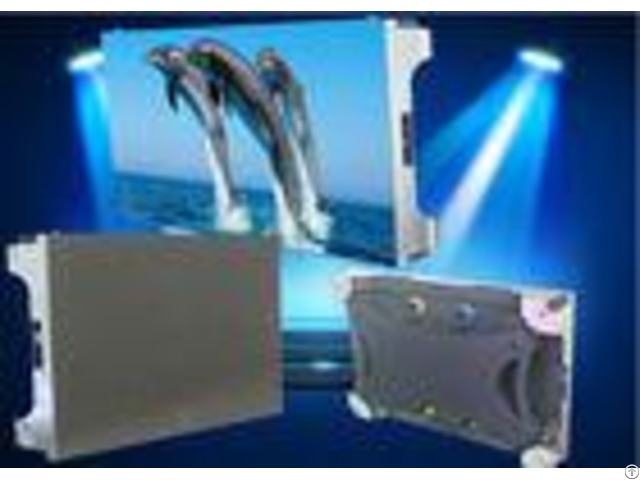

Commercial Hd Small Led Screen Pixel Pitch 2 5mm For Stage Background - China

Commercial HD Small Led Screen Pixel Pitch 2.5mm For Stage Background Specifications 1 - High brightness 2000nits 2 - High Resolution 160000 3 - CE ROHS ETL SGS SAA Fcc UL 4 - Low power consumption 5 - Good Service Description - - - -

Thin and Light-Weight Panels, Crystal Clear Pictures, Ideal for Renting out for Stage Performances | EachIndoor SMD Series panel is 480mm x480mm, and at its thinnest point is only 15mm in thickness.

Each P2.5, P3, P4, P5, P6, P7.62, and P10 panel weighs between 9 to 9.5 Kg.

With simple assembly / disassembly and compact packaging, it is extremely easy to transport, and saves time and labor.

With a 65, 536 grayscale level (16-bit color), high refresh rate and ultra-high contrast in image quality, Outdoor SMD Series panels deliver crystal clear images and are perfect to display high-definition images and videos for stage performances and television studios.

P6 uses SMD3528 black lights to enhance contrast grade.

The application of soft masks ensures a greater flatness of the screen and a seamless patching between cabinets.

P10 panels, IP rated at IP65/54, is suitable for indoor and outdoor applications and adaptable for fixed or rental installations.

| Different Pixel Pitches but Same Panel Dimensions Create Innovative Visual Effects | Pixel pitches for P2.5, P3, P4, P5, P6, P7.62 and P10 panels are 2.5mm, 3mm, 4mm, 5mm, 6mm, 7.72mm and 10mm respectively.

The three products have the same dimensions, which allows a single display screen to have a seamless mosaic of different pixel pitches, providing a creative and innovative solution to meet all types of display needs.

| Die-cast Aluminum Casing, Flat Panels and Special Connector Design Helps Create a Seamless Image Mosaic | The die-cast aluminum casing is created with high-precision machining, ensuring complete panel flatness.

With a special connector design it is easy to reduce gaps while installing, creating a perfect display.

| Original Noise-Free Design and Low Power Consumption | The use of a high-quality aluminum alloy with a fanless thermal design solves the heating problem, reduces noise and power consumption, and minimizes panel weight for easy installation | EMC, UL and ETL Certifications Ensure High Quality | The thin and light-weight A-Series products are EMC, UL and ETL certified to ensure that they meet the quality requirements of most countries.

| - - - - Applications Outdoor all-weather environment and rental use.

High brightness, high protection rating and high stability.

LED Display Screen is applied everywhere in your life.

1 - Sports match: 2 - Park / Square / Plaza 3 - Airport / Stock Market Banner 4 - Highway Banner 5 - Central City Business Screen 6 - Stage Background Characteristics General Module which will make the display very flat and minimum gap between modules endow your LED display with an high-end products.

Technical Parameters - - - -

ParameParametersters | ValValueue | UUnitnit | Pixel pitch | 2.5 | mm | Brightness | 2000 | nit | Panel dimensions (WHD) | 48048080 | mm | Panel dimensions (WHD) | 18.918.93.15 | Inch | Panel materail | Aluminum-alloy | | Weight | 8 | kg | Weight | 20 | lbs | Pixel configuration | Black face SMD 3in1 | | Module dimensions (WH) | 16080 | mm | Module dimensions (WH) | 6.33.15 | Inch | Pixel matrix per panel | 6432 | pixels | Pixel density | 160000 | pixels/sq.m. | Refresh rate | 3000 | Hz | Gray scale per color | 65536 | level | Colors | 281 Trillion | Billion | Viewing angle (H/V) | 180/140 | deg.

| IP rating (Front/Rear) | IP40/IP21 | | Power consumption (max/avg) | 720/240 | W/sq.m. | Input voltage (AC) | 110~240 | V | Operating temperature | -40 ~65 | C | Operating humidity | 10%~90% | | Source compatibility (with video processor) | AV, S-Videom, VGI, DVI, HDMI, SDI, DP | - - - - Pictures for reference
