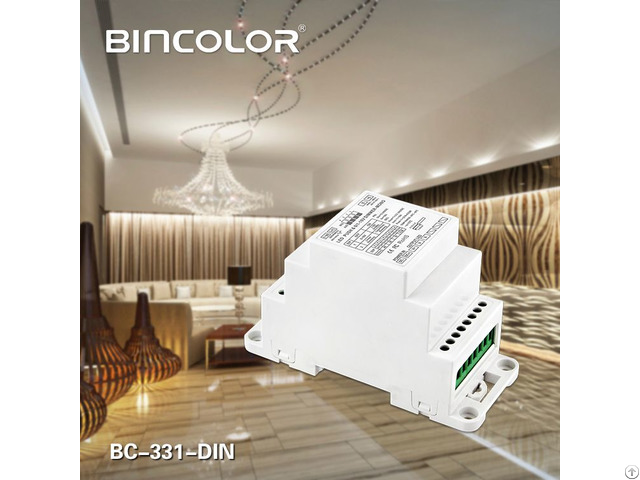

Din Rail 0 1 10v Dimming Driver Bc 331 Din - China

Welcome to use this 0/1-10V dimming driver.

It is to solve the compatible problem of fluorescent dimming and LED illumination, this controller can dim both fluorescent and LED lamps at the same time.

Feature function:

1 - Automatically adapts input voltage DC12V-24V.

2 - 1 output channel, Max output 18A.

3 - PUSH DIM input voltage AC/DC12V-230V.

4 - 0/1-10V to PWM dimming signal conversion, linear or log.

5 - Support linear dimming or logarithmic dimming.

6 - Support optional output frequency 0.5K, 1K, 2K, 4KHz.

7 - Compatible with many brand dimming systems.

8 - Multi units can be worked together or use our power repeaters to control more lamps.

9 - Power loss memory function.

Over current protection, short circuit protection.

10 - The DIN rail style facilitates the installation of large-scale projects.

Product parameter：

Model 0/1-10V Dimming Driver

Input Voltage DC12V-24V

Max Current 18A×1CH

Input Signal 0/1-10V or PUSH DIM

Output Signal Constant Voltage PWM

Max Output Power 216W(12V)/432W(24V)

Output Frequency 0.5K, 1K, 2K, 4KHz selectable

Dimension L111×W46×H66(mm)

Weight(G.

W) 106g
