Dlc Listed 240w Ul Certified Led High Bay Light - China

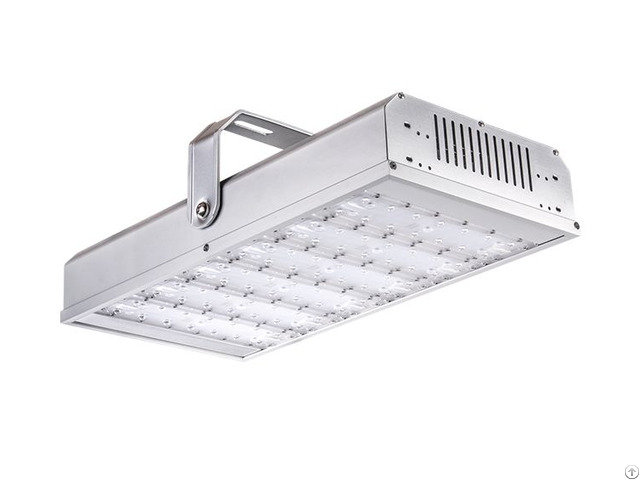

Dlc listed 240w ul certified led high bay light

suspended led high bay light

series hb led high bay light

model：

zgsm-gcd240hb

application：

warehouse | workshop | garage | billboard | area | building

key features

1 - wide power range: 40w~360w.

2 - special circuit design, single led’s damage won't affect others' normal work.

3 - modular design for easy installation, replacement and maintenance.

4 - high lumen output up to 165lm/ w with high quality led chips.

5 - various applications with different mounting accessories.

6 - multiple lighting control options are available, e.g. dali, 1-10v, motion sensor.

7 - designed to last at least 100, 000 hours at l70.

8 - multiple lighting distributions are available.

specifications

model zgsm-gcd240hb

led brand lumileds luxeon® tx

driver brand meanwell hlg series

norminal wattage 240w

led module quantity 6 modules

input voltage 100-240/277/347/480vac


power efficiency >90%

power factor >0.95

lamp rated luminous efficiency >110 lm/w

lamp rated lumen output 26400 lm (lumen tolerance +/- 5%)

color rendering index ra>70

color temperature 3000k, 4000k, 5000k or 5700k

photometric type 60, 90, 110 degrees

optimal operating temperature 25℃

storage temperatures -40°c~50°c

working environment between-40°c~+50°c, 10%~90%rh

total harmonic distortion < 10%

lumen maintenance > 100, 000 hours -l70, @25 ºc (77 ºf)

body stretching aluminum
