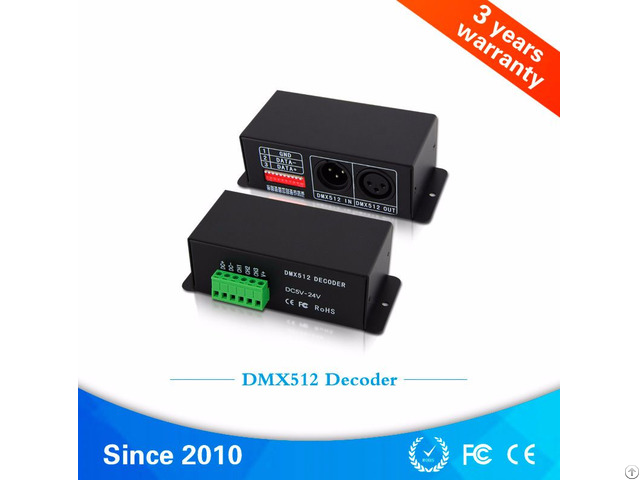

Dmx512 Power Decoder Bc 803 - China

Decoder is designed via advanced microchip technology to convert the universal standard DMX512/1990 signal into most advanced PWM (pulse-width-modulation) digital driving signal, it allows user to choose 1~3 output channel, 256-level brightness control, max 512 output channels.

This compact decoder connects to light console, analog device and various Led terminal products such as RGB Led lamps, RGB Led tubes, building lamps, LED wall washers or lighting and other compatible devices allowing its user to create endless possibilities of light shows.

User’s Manual Feature function:

1 - Input standard DMX512 protocol, Address can be set by DIP.

2 - Automatically adapt input voltage DC12V-24V.

3 - 3 output channels, 256 scale each, RGB driving control.

4 - 10 self-changing modes, 8 speed levels.

5 - Max output 5A*3CH.

6 - Power loss memory function.

Product parameter：

Model CONSTANT VOLTAGE 5A

Input voltage DC5V-24V

Max load current 5A/CH×3

Output Power 75W(5V)/180W/360W(12V/24V )

Output Scale level 256 levels

Input signal DMX512/1990

Output signal 3 constant voltage PWM

Output DMX Channel 3Chs or 4Chs (4th CH is shutter strobe)

DMX512 socket Standard XLR-3R

Dimension L125×W52×H40(mm)

Package Size L140×W77×H47(mm)

Weight (G.

W) 315g
