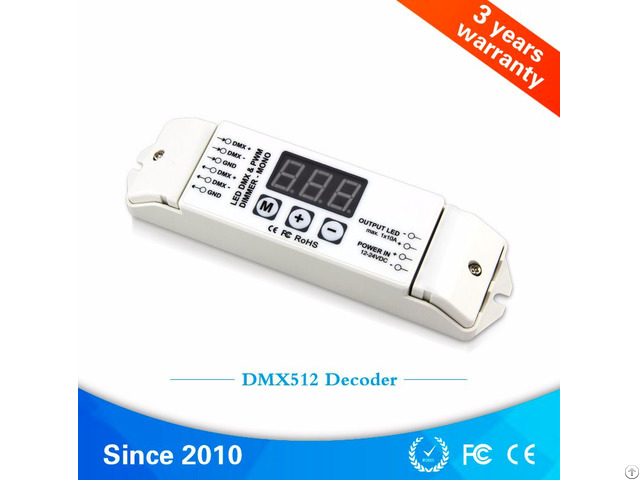

Dmx512 Power Decoder Bc 831 - China

Welcome to use the DMX512 Constant Voltage Decoder which is developed only for constant voltage LED lamps.

It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal.

One channel output, max 10A output each channel, 4096 Grey Scales.

It can be used as DMX512 master or as DMX decoder to connect computerized digital output consol with analog silicon case and controls LED lamps of architecture and lighting.

Feature function:

1 - Automatically adapt input voltage DC12V-24V.

2 - Input standard DMX512 signal; 3-digital-display shows DMX address code.

3 - 1 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft& stable without strobe flash.

4 - DMX Master mode, Slave mode available.

5.30 changing modes and 10 speed scales in master mode.

6 - Indicator of the DMX512 signal receiving status.

7 - Wrong wiring protection at DMX input port.

Over current protection and short circuit protection.

8 - Power loss memory function.

Product parameter：

Model 1CH DMX512 decoder

Input voltage DC12V-DC24V

Max load current 1CH×10A

Max Output Power 120W(12V)/240W(24V)

Grey Scale 4096 levels×1

Input Signal DMX512/1990

Output Signal Constant Voltage PWM

Decode Channel 1CH

DMX512 socket Terminal Block Dimension L176×W46×H30(mm)

Weight (G.

W) 168g
